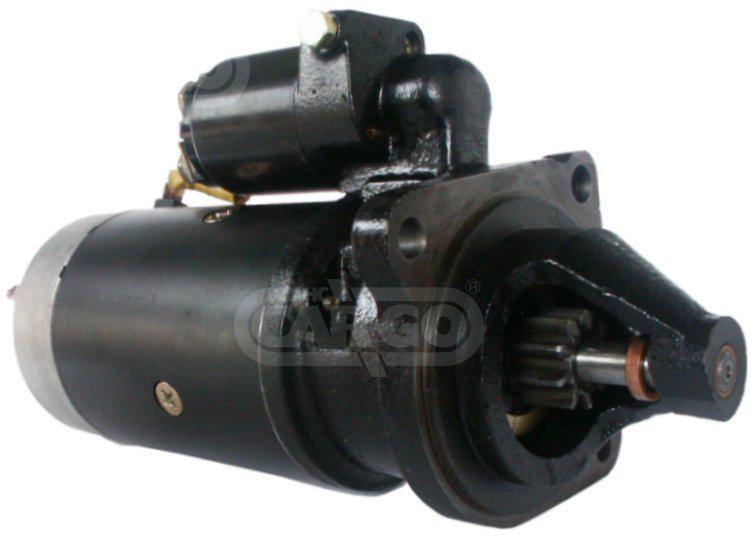

Starter Motor To Fit New Holland, Iveco, Fiat Tractor Etc.
110522
Electrical information
- Voltage 12
- Kw 3.0
Physical information
- H No./teeth 9
- P Rotation CW
- N Gear type DD

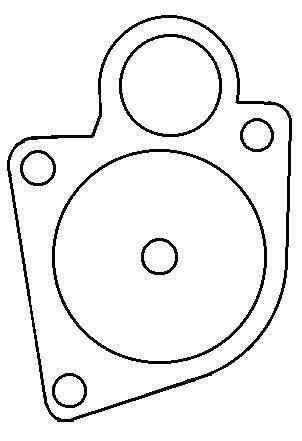

- A Mount. flange 110.00
- I B+ M10
- No./mount. holes 3 (0)
- B Drive dist. 26.50

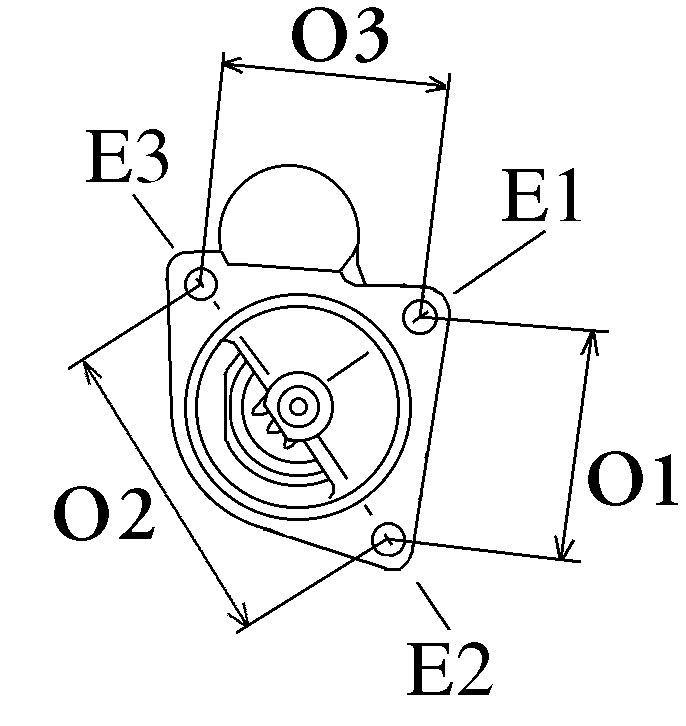

- E Mount. holes 12.00
- E Mount. hole 2 12.00
- E Mount. hole 3 12.00

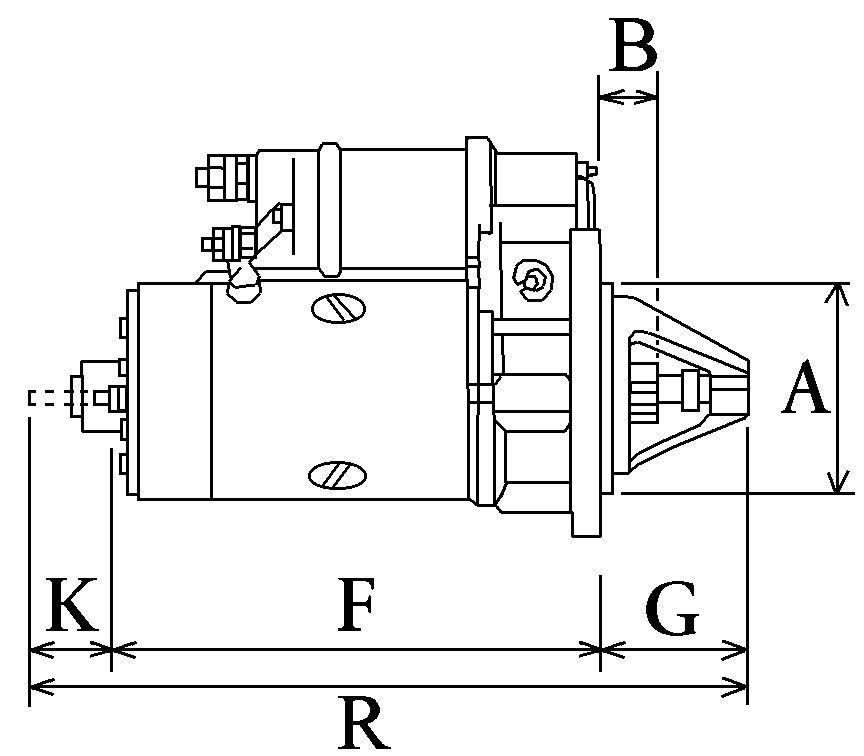

- F Dist./back 255.50
- G Dist./front 73.50
- M Mount. bracket No
- O Dist. mm 115.00
- O Dist. 2 147.00
- O Dist. 3 115.00
- R Total length mm 341.00
Catalogue information
- Drive type Steel
- Waterproof No
- Oil sealed No
Replacing
- 0001230009 Bosch
- 0001359122 Bosch
- 0001367029 Bosch
- 063216896010 Magneti Marelli
- 063216986000 Mako
- 0986012720 Bosch
- 11420 Efel
- 14650 Efel
- 19024202 Remy (delco)
- 19024253 Remy (delco)
- 443115144723 Magneton (Pal/Skoda)
- 455669 Valeo
- 4713806 Fiat
- 4719666 Fiat
- 4737759 Fiat
- 4755110 Fiat
- 4755110 Magneti Marelli
- 4807376 Fiat
- 4807376 Iveco
- 500325146 Iveco
- 63216873 Magneti Marelli
- 63216896 Magneti Marelli
- 63216898 Magneti Marelli
- CS682 HC-PARTS
- MT68L Magneti Marelli
- MT68LA Magneti Marelli
- MT68LB Magneti Marelli
- MT68LC Magneti Marelli
- R11.03 Elmot
- R11C Elmot
IF YOU ARE IN ANY WAY UNSURE THAT THIS IS THE CORRECT STARTER FOR YOU THEN PLEASE CONTACT US & WE WILL ASSIST YOU.
