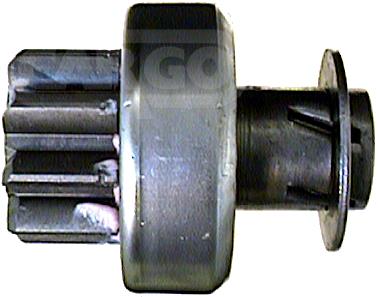

Starter Motor Drive Pinion Bendix Clutch Teeth HC-CARGO Replacing DENSO 9 Tooth 5 Spline SDV32671 136086
136086
Details and description
Splines A 5, No./teeth 9, OD mm 29.00, Total length mm 53.65, OD/housing mm 43.30, Rotation CR, ID mm 11.00, Remarks Clutch O.D. 43.50 mm.

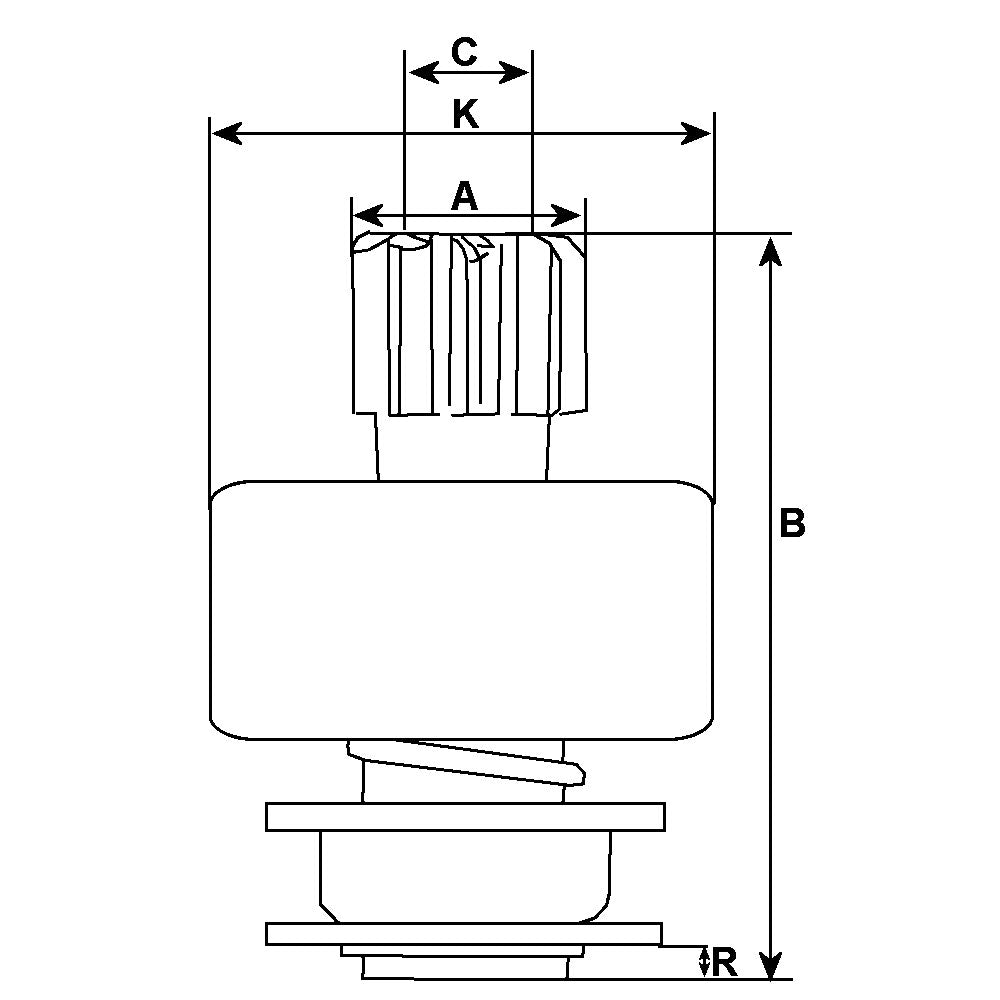

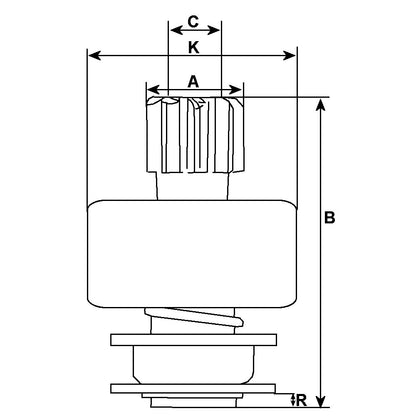

Physical information
- A OD mm 29.00
- B Total length mm 53.60
- C ID mm 11.00
- No./teeth 9
- Splines internal 5
- K OD/housing mm 43.30
- Rotation CW
- R Shaft dist. mm 5.00
Further information
- Clutch O.D. 43.50 mm.
Replacing
- 028300-6070 Denso
- 028300-6960 Denso
- 0809 Zen
- 1.01.0809.0 Zen
- 1.01.0810.0 Zen
- 2389 ghi
- 28011-70020 Toyota
