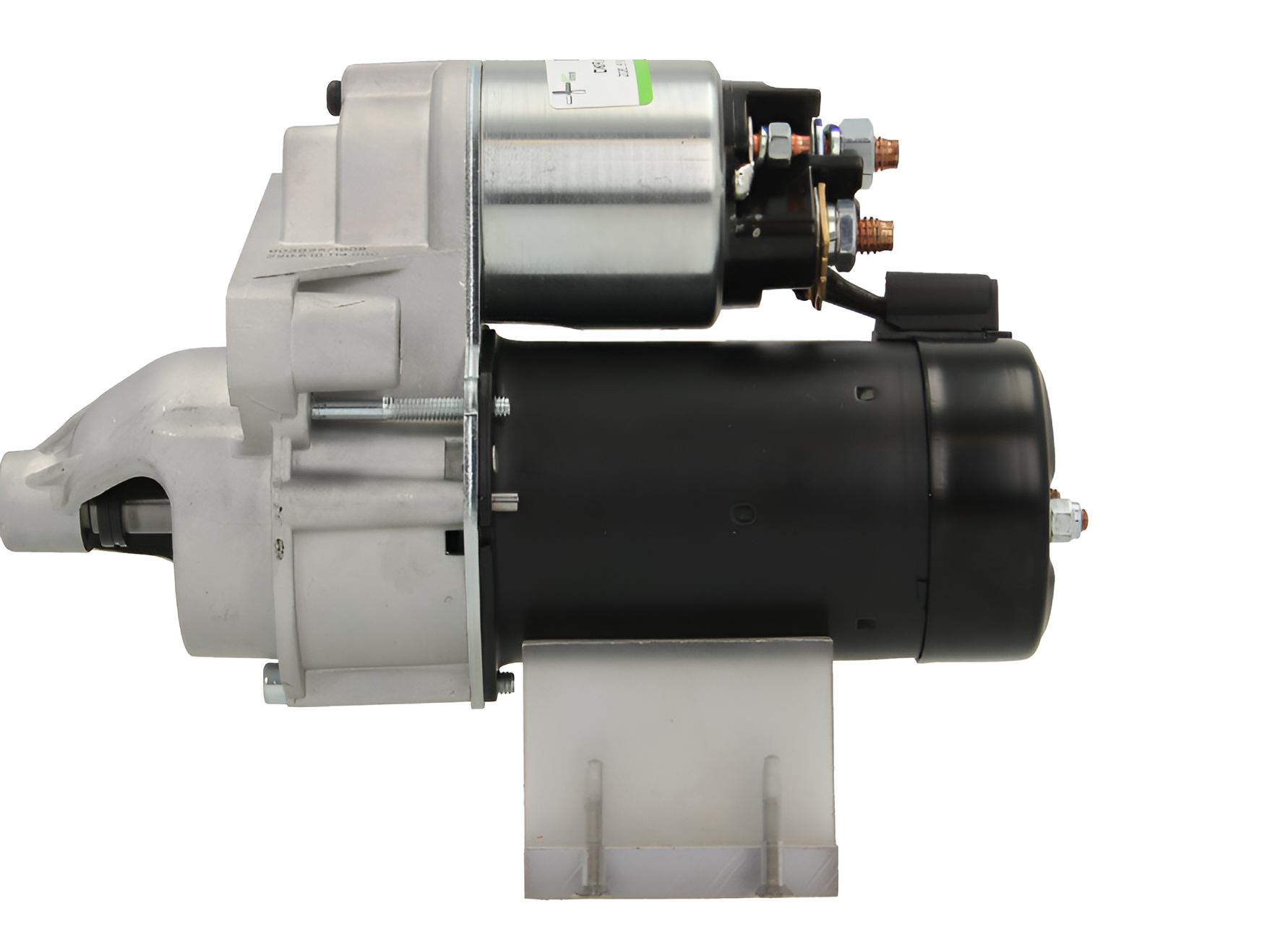

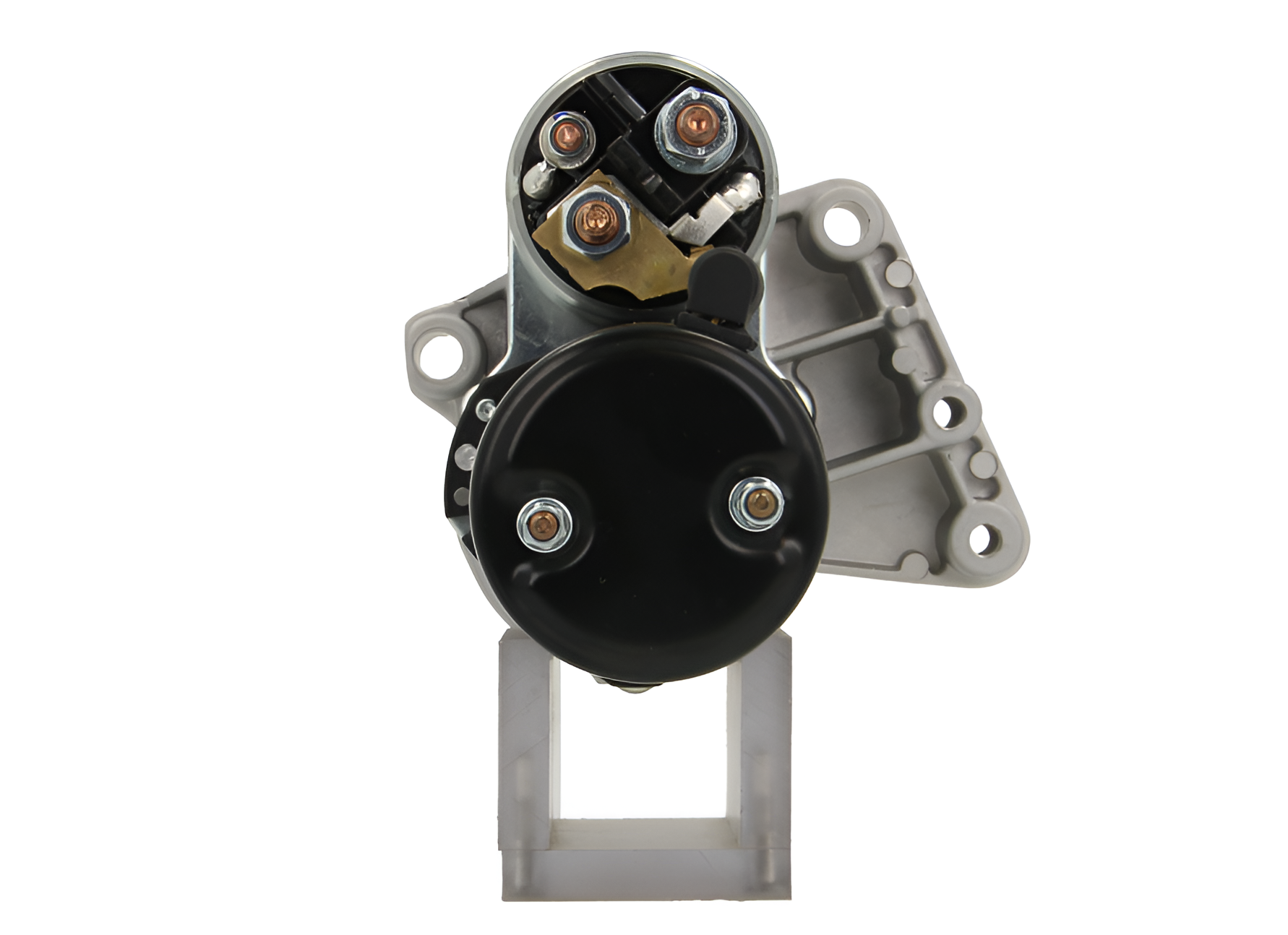

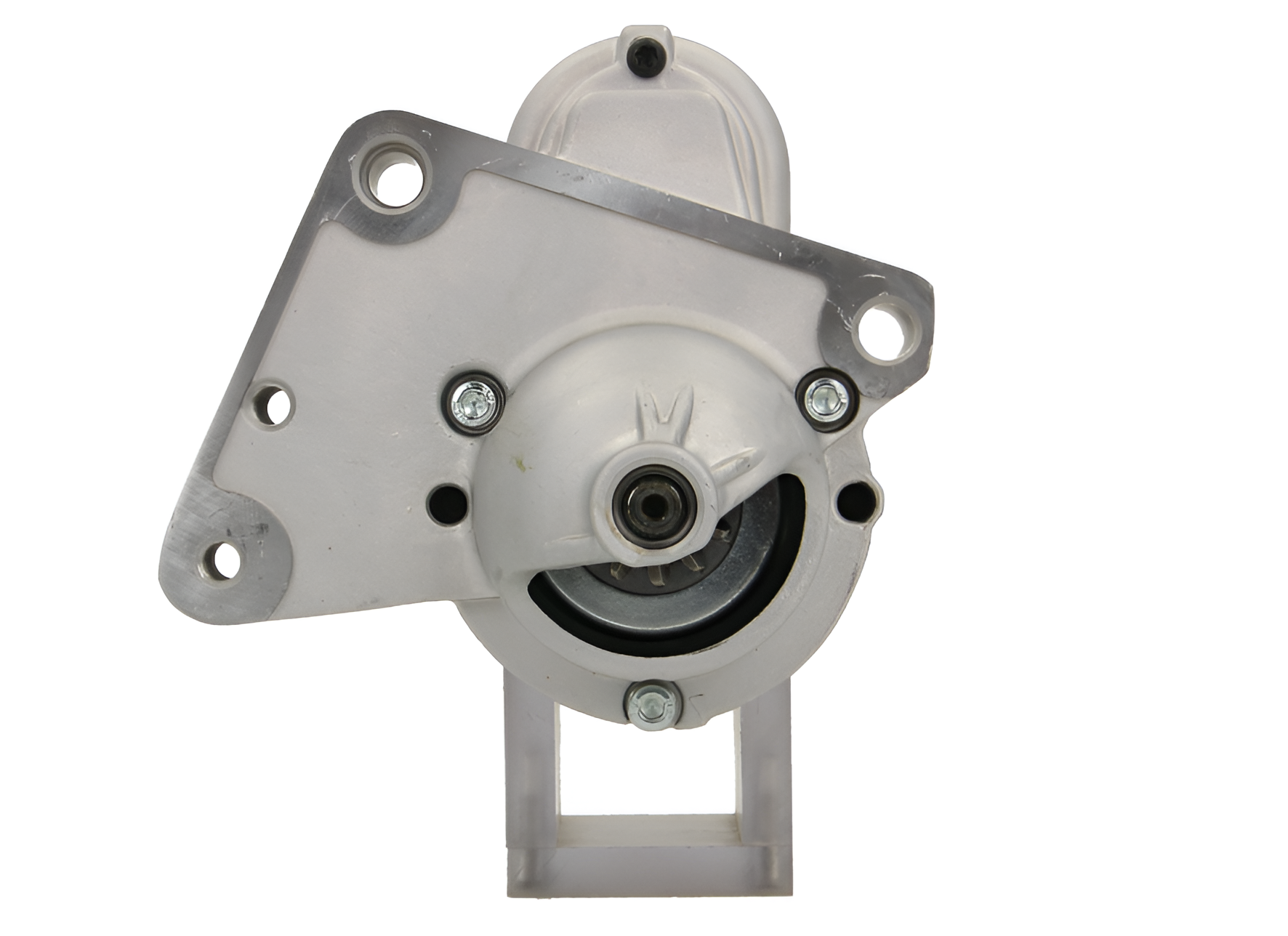

Starter motor for Peugeot, Citroen, Toyota, Fiat etc. 1.4HDI & 1.6HDI 113254 / STR54045

Vendor:Wood Auto Supplies Ltd

Availability: Low stock: 2 left

Product Type:STR54045

Product Indentifier:731084225200

Regular price
£89.42 inc VAT £74.52 ex VAT
Regular priceSale price
£110.40 £89.42 inc VAT £74.52 ex VAT
Sale Sold out
Shipping calculated at checkout.
View full details

Starter motor for Peugeot, Citroen, Toyota, Fiat etc. 1.4HDI & 1.6HDI 113254 / STR54045

113254

STR54045

Electrical specifications

  • Voltage 12
  • kW 1.4

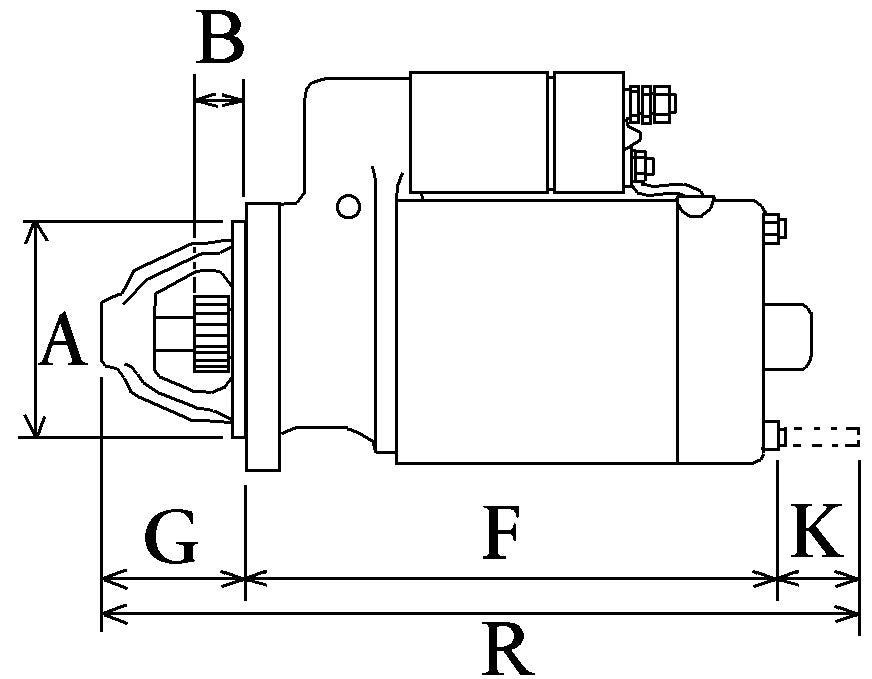

Physical specifications

  • A Mount. flange 62.00
  • B Drive dist. 14.00
  • F Distance./back 162.00
  • G Distance./front 49.50
  • H No. of teeth 11,12
  • I B+ M8 N Gear type GR

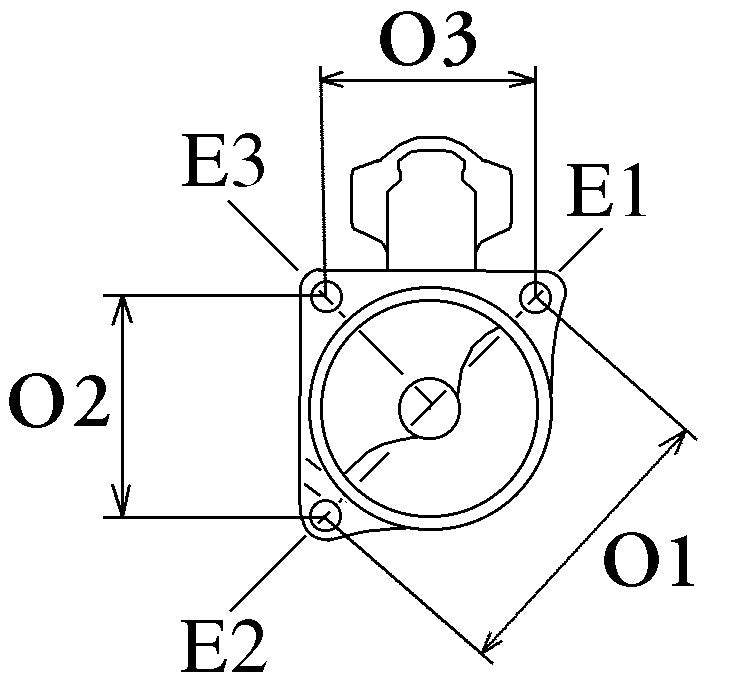

  • O Dis. mm 125.50
  • O Dist. 2 29.50
  • O Distance. 3 47.00
  • O Dist. 4 90.00
  • P Rotation CR
  • R Total length mm 206.00
  • Further information
  • No./mount. holes 4 (2)

Additional Information

  • Clutch type - Dry
  • Drive type - Steel
  • Oil sealed - No
  • Waterproof - No

    Replacing

    • 00005802AZ    PSA
    • 00005802FG    PSA
    • 0001174643    Bosch
    • 063720014010    Magneti Marelli
    • 063721260010    Magneti Marelli
    • 0986021651    Bosch Exchange
    • 113254    HC-Cargo
    • 1213257    Valeo
    • 14130028    AES
    • 14130213    AES
    • 14130227    AES
    • 1638115880    PSA
    • 190549    Valeo
    • 195051    Valeo
    • 220519114    PSH
    • 231224    HC-Cargo
    • 28100YV010    Toyota
    • 28100YV011    Toyota
    • 32570N    WAI
    • 4280001640    Denso
    • 438133    Valeo
    • 446514    Valeo
    • 455982    Valeo
    • 460425    Valeo
    • 5802AZ    PSA
    • 5802FG    PSA
    • 5802FH    PSA
    • 5802FP    PSA
    • 5802Y4    PSA
    • 5802Y5    PSA
    • 5802Y6    PSA
    • 63280091    Magneti Marelli
    • 63280091010    Magneti Marelli
    • 63721260    Magneti Marelli
    • 63721260010    Magneti Marelli
    • 726062    Valeo
    • 726862    Valeo
    • 943293541010    Magneti Marelli
    • 944280801790    Magneti Marelli
    • 944293541010    Magneti Marelli
    • 9637813680    PSA
    • 96408252    PSA
    • 9640825280    PSA
    • 9646679980    PSA
    • 9664016980    PSA
    • 9688268480    PSA
    • 9688268580    PSA
    • 968826858000    PSA
    • 9688512780    Fiat Group
    • 969285368A    PSA
    • 9801667580    PSA
    • 980166758000    PSA
    • CS1260    HC-Parts
    • D6G110    Valeo
    • D6RA110    Valeo
    • D6RA110RR    RNL
    • DRS3903    Delco Remy
    • DRS3903X    Delco Remy
    • F032113254    HC-Cargo
    • F032US0065    Bosch
    • F042200090    Bosch
    • F042S01227    Bosch
    • F042S07012    Bosch
    • HCS1260    HC-Parts
    • K9637813680    Fiat Group
    • LES0445    Lucas
    • LRS01569    Lucas
    • LRS1569    Lucas
    • MQS014    Magneti Marelli
    • MQS1260    Magneti Marelli
    • MRS54101    Magneti Marelli
    • MRS80179    Magneti Marelli
    • MSR544    Magneti Marelli
    • OSM11048    Optimum
    • RAS34014    Delco Remy
    • RNLD6RA110    RNL
    • RNLTS14E110    RNL
    • STR4606    Unipoint
    • STR54045    Wood Auto
    • STR7230    Unipoint
    • TS1462    Valeo
    • TS14E110    Valeo
    • VAL438133    Wood Auto
    • VALTS14E110    Wood Auto
    • WOOSTR54045    Wood Auto

    IF YOU ARE IN ANY WAY UNSURE THAT THIS IS THE CORRECT STARTER FOR YOU THEN PLEASE CONTACT US & WE WILL ASSIST YOU.

        * All products come with 12 months warranty unless otherwise stated.
        * Please contact us with any issues so we can provide a solution for you.
    ** Please note the applications are a guide only & for a 100% sure fit you should match the unit with the O.E. Number from your old part or vehicle registration. The chassis number can be checked if you send us a message **

    Citroen C3 1.4 HDI
    Citroen C4 1.6 HDI
    Peugeot 206 1.4 HDI
    Peugeot 307 1.4 HDI
    Toyota Aygo
