Starter Motor Solenoid 24V M10 3 Terminal Fiat Marelli Cargo 131115

2 sold in last 8 hours
Hc-Cargo
In stock
131115
788863061788
£24.98 £20.82

MARELLI TYPE STARTER MOTOR SOLENOID...

£20.82
customers are viewing this product
Starter Motor Solenoid 24V M10 3 Terminal Fiat Marelli Cargo 131115
Description

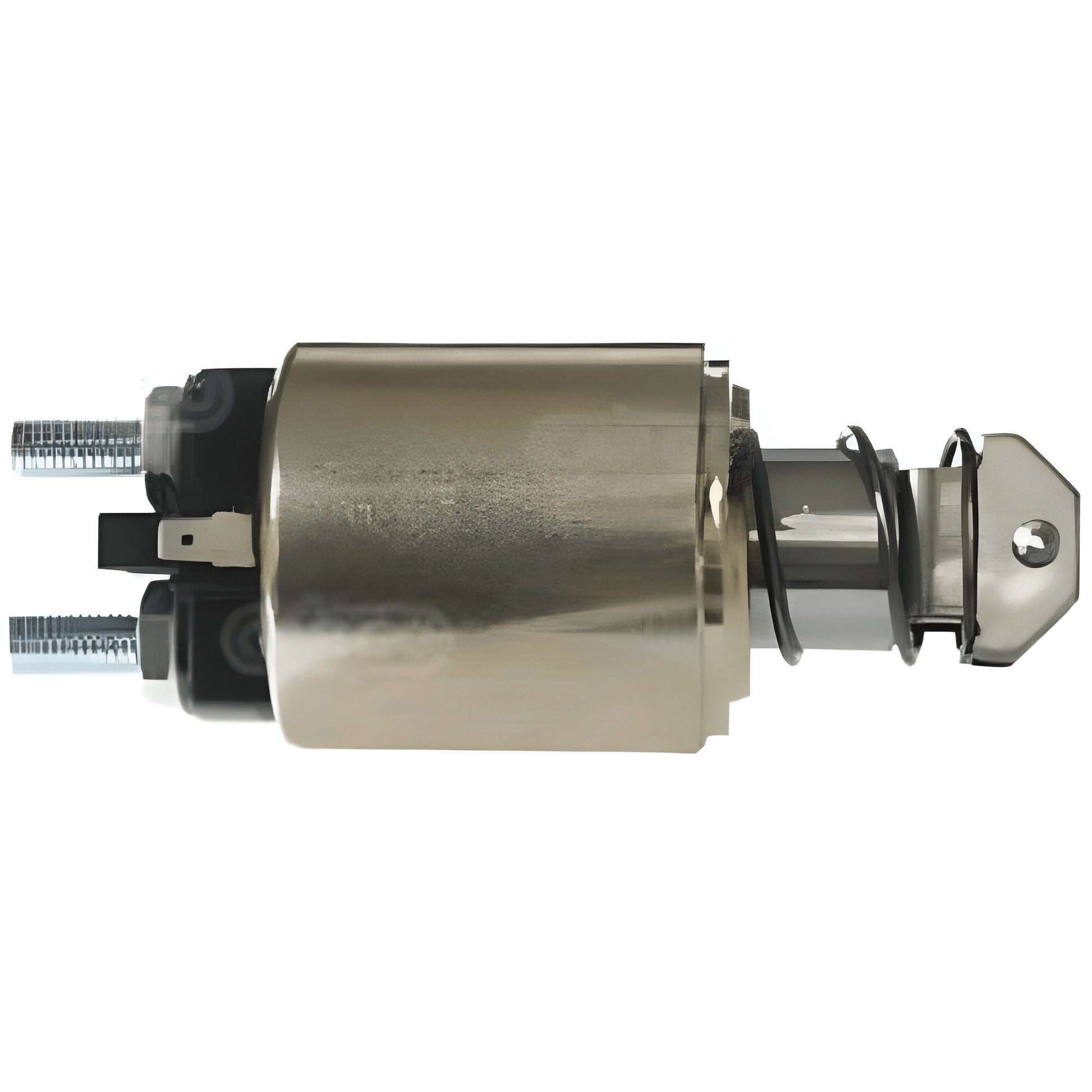

MARELLI TYPE STARTER MOTOR SOLENOID

24V M10, 3 TERMINAL

FIAT MARELLI

131115

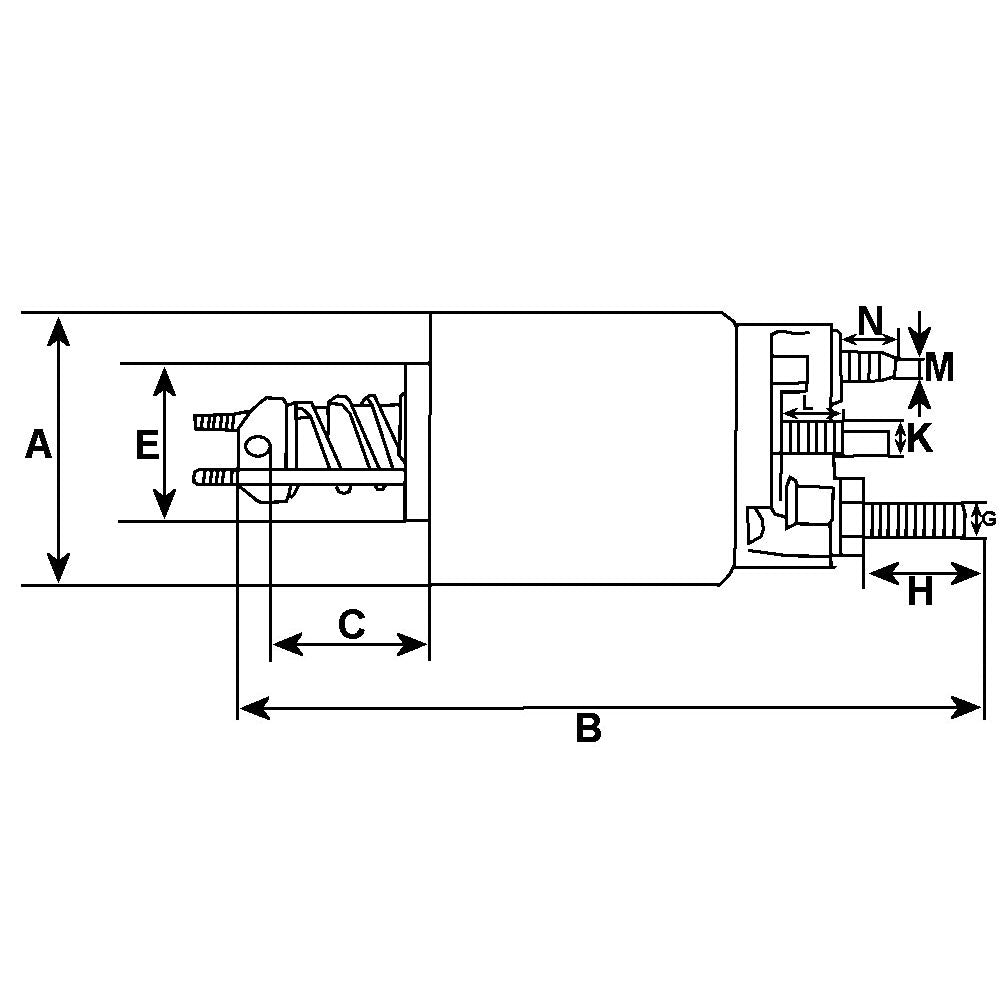

Bracket
M Coil bolt M10
D OD/cover 54.70
E ID/cover 30.00
G B+ M10
H Height/B+ 20.35
K Kl. 50/mm 6.3
N Coil bolt l. 20.35
L Width/kl. 50 14.00

Bracket

No./terminals 3


Electrical specifications

Voltage 24

Physical specifications
A OD 60.80
B Total length 157.80

Further information

Remarks Cap: Cargo 131329. Moving contact: Cargo 132248.
Further information

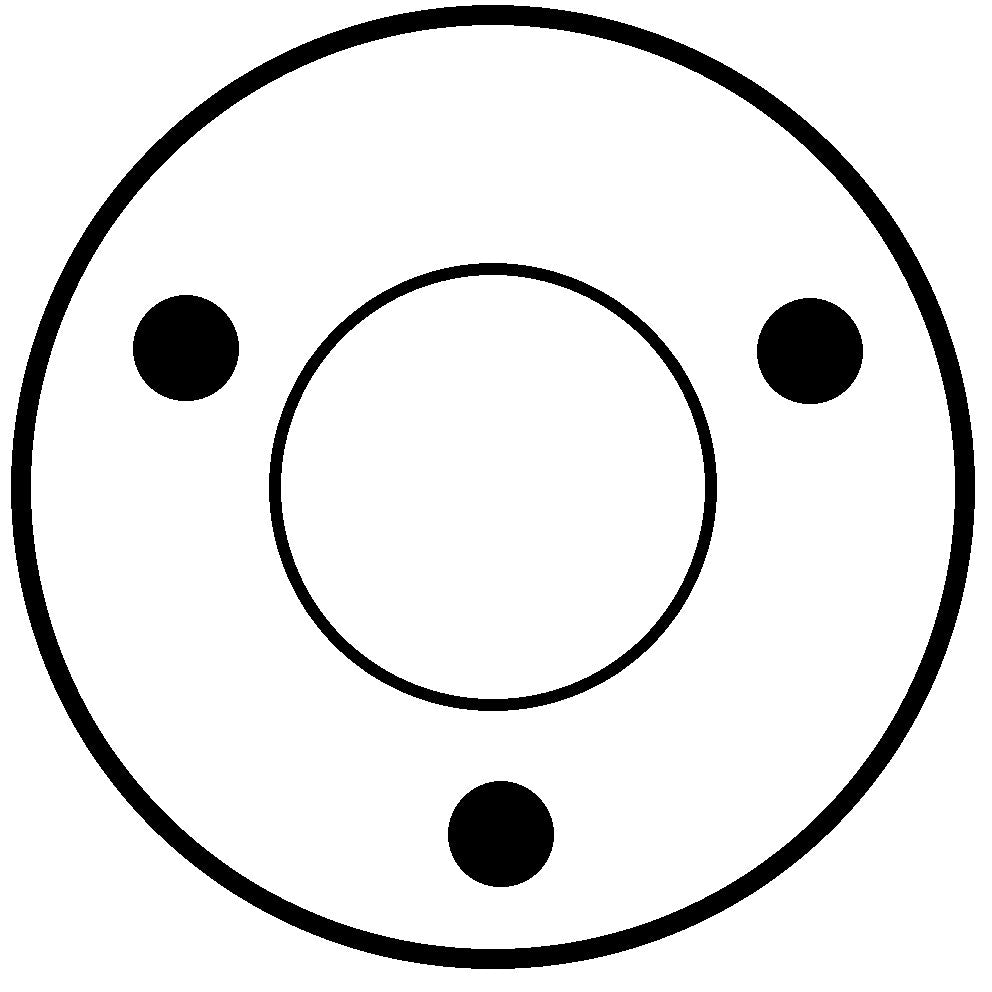

Drawing No20

FITS HITACHI DIGGERS ETC.

CROSS REFERENCE

OEM REFERENCE
FIAT/MARELLI 63633901
FIAT/MARELLI 63633902
FIAT/MARELLI 63633925
FIAT/MARELLI 63633933
FIAT/MARELLI 79036685
FIAT/MARELLI 7980336
FIAT/MARELLI 85540111
FIAT/MARELLI 85540211
FIAT/MARELLI 9986109
FIAT/MARELLI IE39A
FIAT/MARELLI IE39AA
FIAT/MARELLI IE39AAA
FIAT/MARELLI IE39B
FIAT/MARELLI IE39BA

FITS UNIT

FIAT/MARELLI

4735444 4737754 4737756 4737757 4737761 4752403

4807378 63216727 63216731 63216733 63216738 63216740

63216741 63216747 63216748 63216763 63217225 63217226

63221630 MT67 MT67AC MT67AD MT67BA MT67CA

MT67CB MT67DA MT67FA MT67FB MT71SB MT72AA

MT72AB

ANOTHER HIGH QUALITY HC CARGO PRODUCT

( A BOSCH GROUP COMPANY )
