STARTER MOTOR SOLENOID LUCAS TYPE HD BATTERY TERM 10MM WOOD AUTO SND1419

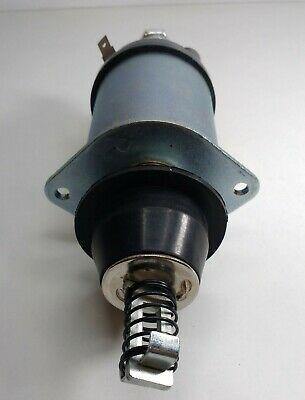

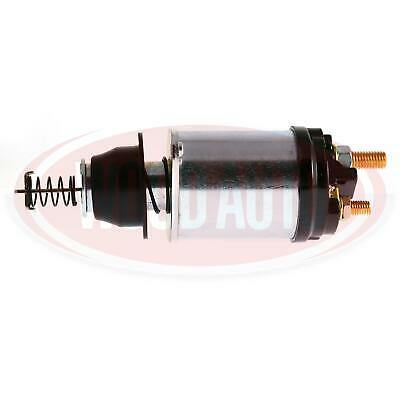

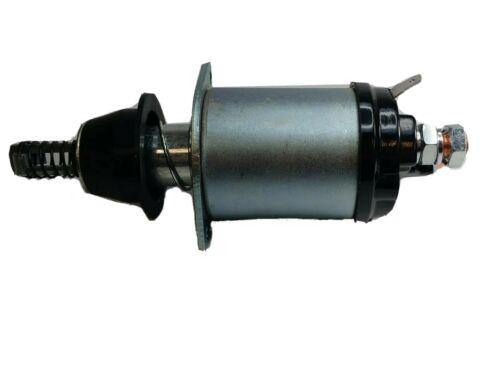

LUCAS STARTER MOTOR SOLENOID
SND1419
131785

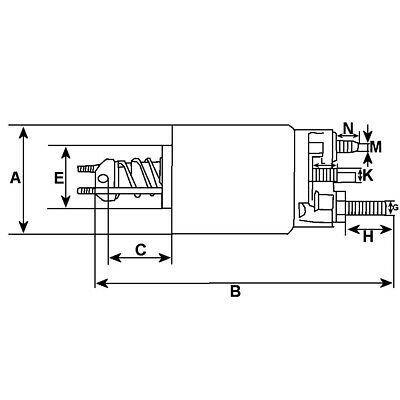

Bracket
- M Coil bolt M8
- D OD/cover 60.00
- E ID/cover 25.75
- G B+ M10
- H Height/B+ 23.80
- K Kl. 50/mm 6.3
- N Coil bolt l. 20.15
- L Width/kl. 50 16.15

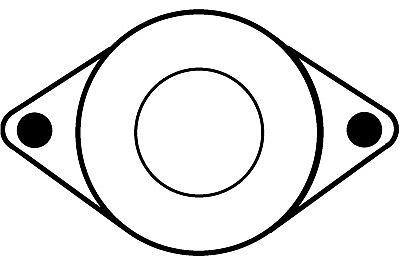

- FLANGE MOUNTNG HOLES: 67MM
- No./terminals 3
Electrical specifications
- Voltage 12
Physical specifications
- A OD 54.75
- B Total length 186.20
Further information
- Servicing 2M113, M45G

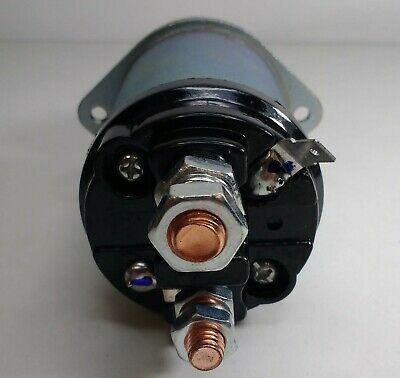

1 x HEAVY DUTY BATTERY TERMINAL M10 & 1 x 8mm Terminal
CASE/INTERNATIONAL & OTHERS
CROSS REFERENCE, OEM REFERENCE
- LUCAS 60925071
- LUCAS 60933106
- LUCAS 60933109
- LUCAS 76994
- LUCAS 77036
- LUCAS 77140
- LUCAS 77147
- LUCAS 77149
- LUCAS 77173
- LUCAS TOB121
- LUCAS TOB182
- LUCAS TPB117
- LUCAS TPB120
- LUCAS TPB133
FITS UNIT LUCAS
- 26390 26390A 26390B/E 26394
- 26394A/D 27430 27430A
- 27430A/B 27440 27440A/B 27501
- 27501A/B 27501A/E 27501B 27501E
- 27505A 27505A/D 27508
- 27508A/B 27508A/D 27542
- 27542A/D 27546A/B 27556
- 27556A 27560 27560A/B
ANOTHER HIGH QUALITY WOOD AUTO PRODUCT
