STARTER MOTOR SOLENOID BOSCH M10 CASE FIAT JOHN DEERE SAME 12V 130302
SND1142
130302
This product is compatible with the brand names mentioned in this listing
BOSCH / FIAT / MARELLI STARTER MOTOR SOLENOID M10 12V
** Images are used for reference purposes only, colour may differ **

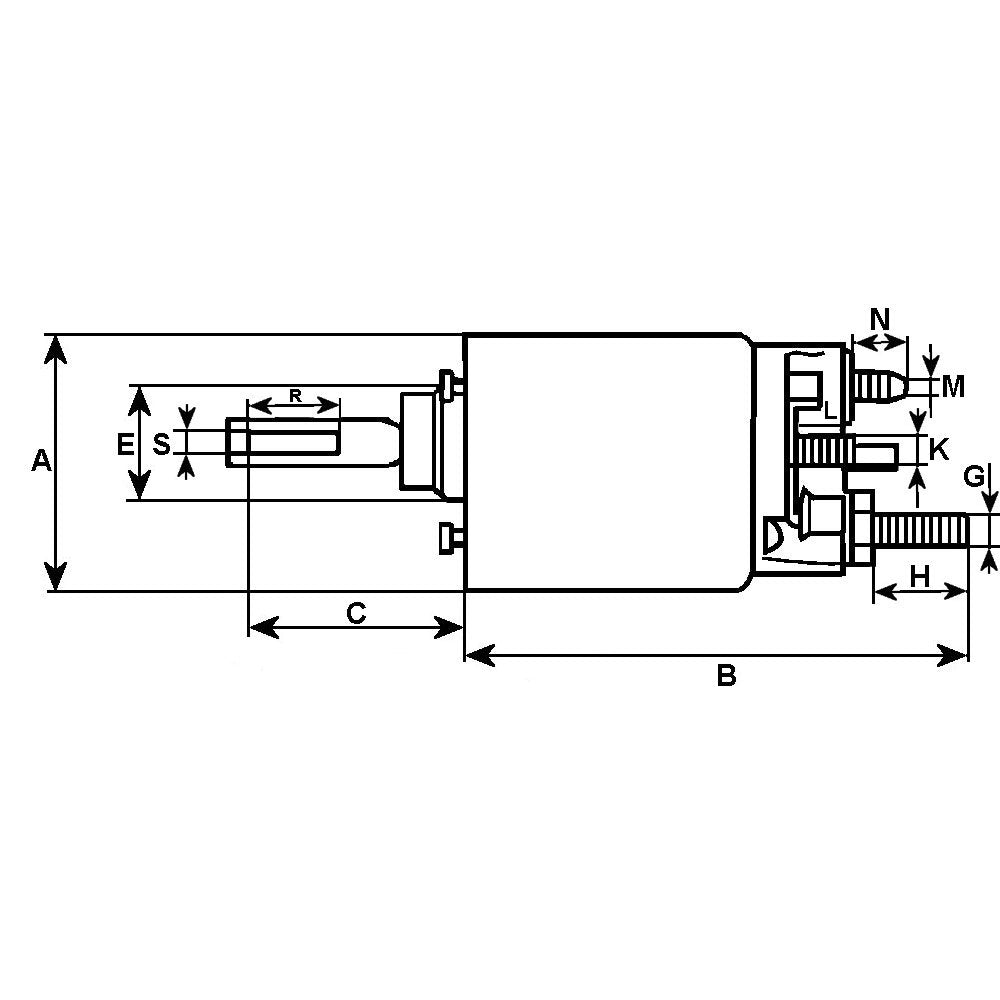

Bracket
- M Coil bolt M10
- D OD/cover 53.45
- E ID/cover 29.60
- G B+ M10
- H Height/B+ 23.00
- K Kl. 50/mm M4S
- T Kl. 30h/mm M10
- U Width/kl. 30h 16.00
- N Coil bolt l. 17.00
- L Width/kl. 50 2.95
- No./terminals 3
Electrical specifications
- Voltage 12
Physical specifications
- A OD 61.00
- B Total length 164.30
CROSS REFERENCE, OEM REFERENCE
- BOSCH 0331401032
- BOSCH 0331401038
- BOSCH 0331401045
- BOSCH 0331402002
- BOSCH 0331402003
- BOSCH 0331402017
- BOSCH 0331402024
- BOSCH 0331402045
- BOSCH 0331402087
- BOSCH 0331402202
- BOSCH 0331402205
- BOSCH 0331402502
- BOSCH 0331402503
- BOSCH 0331402524
- BOSCH 9330081030
- FIAT/MARELLI 704056
- FIAT/MARELLI 704062
- FIAT/MARELLI 8122144
- FIAT/MARELLI 83402002
- FIAT/MARELLI 83402003
- FIAT/MARELLI 9959805
FITS UNIT, BOSCH
- 0001358049 0001358200 0001358201
- 0001358202 0001359025 0001359041
- 0001359053 0001359068 0001359072
- 0001359073 0001359077 0001359078
- 0001359081 0001359082 0001359094
- 0001359099 0001359100 0001359106
- 0001359108 0001359119 0001359128
- 0001362009 0001362012 0001362013
- 0001362014 0001362015 0001362016
- 0001362017 0001362022 0001362023
- 0001362024 0001362025 0001362026
- 0001362034 0001362035 0001362036
- 0001362037 0001362041 0001362043
- 0001362046 0001362050 0001362055
- 0001362058 0001362063 0001362071
- 0001362074 0001362095 0001362097
- 0001362104 0001362300 0001362305
- 0001362306 0001362307 0001362310
- 0001362311 0001362312 0001362313
- 0001362316 0001362703 0001366001
- 0001366002 0001366003 0001366009
- 0001366010 0001366012 0001366013
- 0001366014 0001366016 0001366017
- 0001366018 0001366020 0001366024
- 0001366025 0001366027 0001366028
- 0001366029 0001367001 0001367004
- 0001367005 0001367009 0001367010
- 0001367013 0001367023 0001367036
- 0001367040 0001367041 0001367043
- 0001367047 0001367049 0001367052
- 0001367062 0001367071 0001367075
- 0001367302 0001369001 0001369005
- 0001369016 9000083027 9000083028
- 9000083045 9000083053 9000083054
- 9000083055 9000083056 9000083057
- 9000083058 9000083059 9000083060
- 9000083067 9000083069 9000083071
- 9000083072 9000083077 9000143002
- 9000143203 9000143204 9000143409
- 9000143410 9000143411 9000143420
- 9000453080 9000453082 9000453089
- 9000453091
- * All products come with 12 months warranty unless otherwise stated.
- * Please contact us with any issues so we can provide a solution for you.
-
