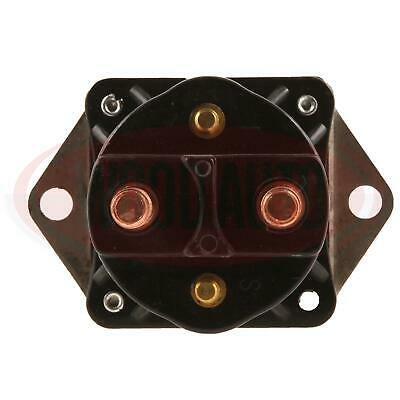

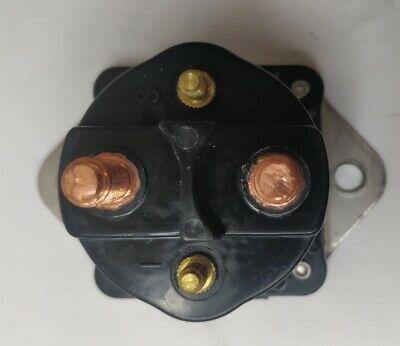

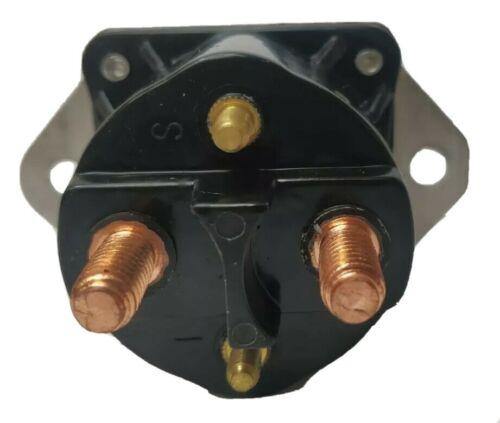

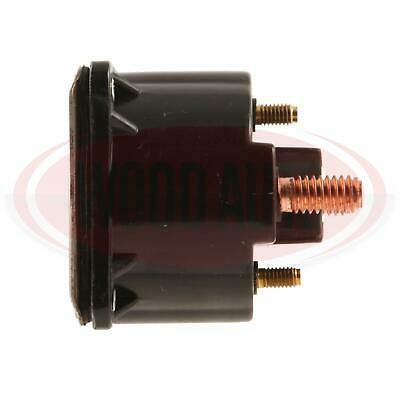

Starter Solenoid John Deere Prestolite Omc Mercury Marine 12V Wood Auto SND12337

12v STARTER MOTOR SOLENOID Insulated Return, Marine & agricultural Use

SND12337
133857

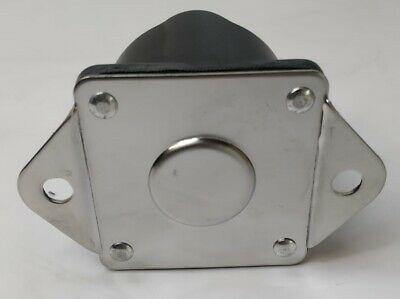

Bracket

• M Coil bolt M8
• D OD/cover 54.75
• G B+ M8
• H Height/B+ 14.45
• I Kl. 15a/mm M5
• K Kl. 50/mm M5
• N Coil bolt l. 14.30
• J Width/kl. 15a 9.90
• L Width/kl. 50 9.80
• No./terminals 4

Electrical specifications

• Voltage 12
• A 100
• Intermittent load 800 Amp.

Physical specifications

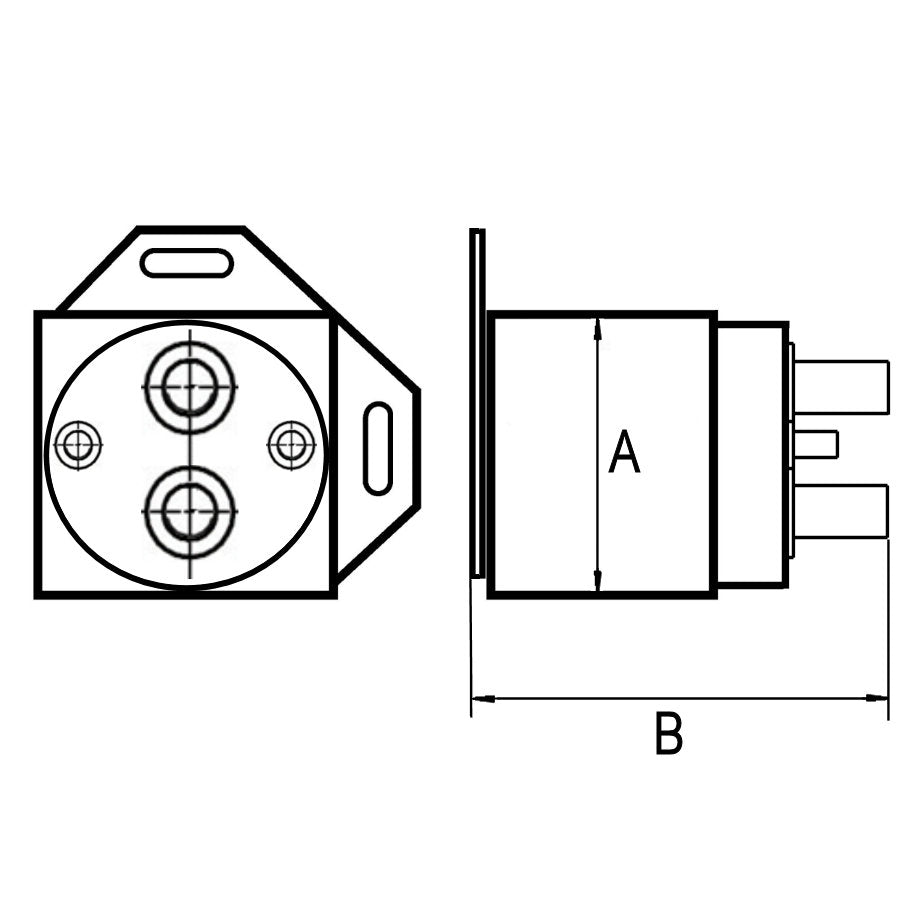

• B Total length 55.50

Further information

• 3.95-4.15 coil resistance.

Further information

• PRESTOLITE OMC MERCURY MARINE JOHN DEERE SUBARU

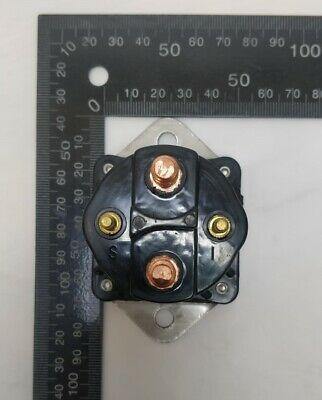

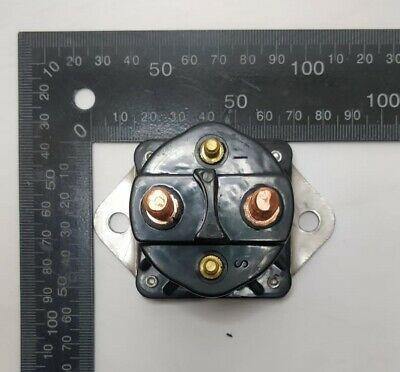

• MOUNT HOLE DISTANCE CENTRE TO CENTRE 67MM APPROX.

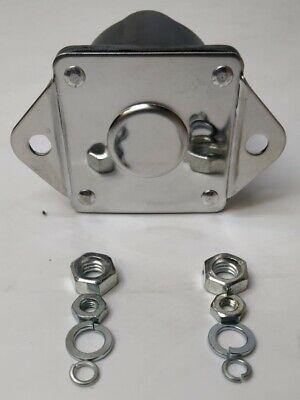

• 12 Volt, 4-Terminal, Isolated Base (COMES COMPLETE WITH NUTS)

Used On:

• Evinrude
• Johnson
• Mercury Marine
• OMC

REPLACES:

United Technologies

• SO-51177
• 8890-3

OMC

• 378444
• 581528

Prestolite

• 15-5C, 15-6, 15-66, 15-72, 15-137, 15-150, 15-274, 15-275, 15-295, 15-340, 15-348, 15-351, 15-368, 15-391, 15-400, 15-415, 15-418, 15-441, 15-451, 15-457, 15-487, SAE-4003M, SAS-4206, SAS-5202C

Delco

• 1477, 1486, 1114206, 1114537
• SAW-4206, M
• SAW-4221Y, SAW-5203
• SAZ-4201AB, ABY, AHY, AL, AP, BC, BR, CJ, DUY, EY

Cole Hersee

• 24023

Mercury Marine

• 25661
• 8761053
• 8915857
• 8976545
• 8968258

CROSS REFERENCE, OEM REFERENCE

• MARINE 59638258
• MARINE 8761053
• MARINE 8915857
• MARINE 8968258
• MARINE 8976454
• OMC 182869
• PRESTOLITE 15275
• PRESTOLITE 15351
• PRESTOLITE 15368
• PRESTOLITE 15400
• PRESTOLITE 15487
• PRESTOLITE SAZ4201AHY
• PRESTOLITE SAZ4201AP
• PRESTOLITE SAZ4201BC
• PRESTOLITE SAZ4201EY
• PRESTOLITE SAZ4201U
• SUBARU 89638258

ANOTHER HIGH QUALITY WOOD AUTO PRODUCT
