STARTER SOLENOID LUCAS TYPE M50 FORD JCB PERKINS MASSEY 12V WOOD AUTO SND1409
LUCAS STARTER MOTOR SOLENOID 12V M50
SND1409 / 131248

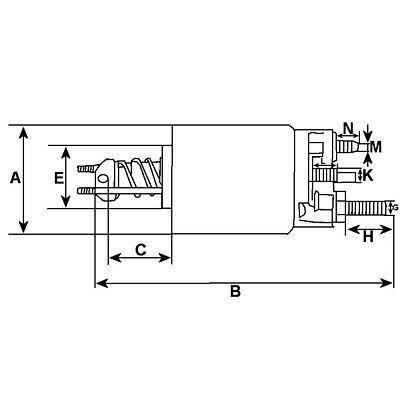

Bracket
- M Coil bolt M6
- D OD/cover 59.75
- E ID/cover 26.00
- G B+ M8
- H Height/B+ 22.55
- K Kl. 50/mm 6.3
- N Coil bolt l. 18.10
- L Width/kl. 50 14.35
- No./terminals 4
Electrical specifications
- Voltage 12
Physical specifications
- A OD 55.20
- B Total length 204.65
Further information
- Servicing M50
Case Tractor, David Brown Tractor, Allis Chalmers Tractor, Lister-Petter, Massey Ferguson Tractor, Ford, New Holland early JCBs
CROSS REFERENCE Lucas
- 76740
- 76753
- 76756
- 76781
- 76825
- 76833
- 76834
- 76835
- 76836
- 76854
- 76862
- 76864
- 76865
- 76869
- 76881
- 76900
- 76910
- 76911
- 76912
- 76913
- 76928
- 76956
- 77010
- 77025
- 77032
- 77052
- TOB108
- TOB110
- TOB111
- TOB129
- TOB133
- TOB179
- TOB184
Valeo
- 76711
- 76733
- 76955
FITS UNITS LUCAS
- 26211
- 26211A
- 26211A/L
- 26211L
- 26211M/T
- 26211N
- 26211N/R
- 26211R/T
- 26211T
- 26211U
- 26227
- 26227A
- 26227A/Q
- 26227E
- 26227F
- 26227R
- 26227R/N
- 26227R/V
- 26234
- 26234A
- 26234A/D
- 26234A/K
- 26234H
- 26234J
- 26234K
- 26246
- 26246A/L
- 26246M
- 26265
- 26265F/M
- 26265J/M
- 26273
- 26273A
- 26273A/D
- 26273B
- 26273D
- 26273E/F
- 26273E/M
- 26273H/M
- 26274
- 26274A/D
- 26274B
- 26274B/D
- 26274E
- 26274E/F
- 26274E/N
- 26274H/N
- 26275A/D
- 26282
- 26282A/D
- 26284
- 26284A/E
- 26284D/E
- 26290
- 26290B
- 26294
- 26294A
- 26294A/B
- 26294D
- 26294D/E
- 26294F/N
- 26294F/Q
- 26295
- 26295A/B
- 26295D/Q
- 26297
- 26297A/B
- 26297D/E
- 26297D/J
- 26297F/J
- 26298
- 26298A/B
- 26298D/E
- 26298D/J
- 26298F/J
- 26304
- 26304A
- 26304A/B
- 26304A/D
- 26304D
- 26305
- 26305A/B
- 26305D/H
- 26305D/N
- 26305F
- 26305J/N
- 26316
- 26316A/D
- 26316D
- 26316E/L
- 26317
- 26317A
- 26317B/D
- 26317B/H
- 26317E/H
- 26323
- 26323A
- 26329
- 26329A/L
- 26329D/K
- 26337
- 26337A/B
- 26337A/H
- 26337D/H
- 26338
- 26338A
- 26338A/F
- 26338B
- 26338D
- 26338F
- 26339
- 26339A
- 26339A/K
- 26339B
- 26339D
- 26339D/H
- 26339F
- 26341
- 26341A
- 26341A/B
- 26341A/J
- 26341D/J
- 26343
- 26343A/B
- 26343A/K
- 26343D/K
- 26344
- 26344A/F
- 26344B/F
- 26345
- 26345A/B
- 26345A/J
- 26345D/J
- 26350
- 26350B/H
- 26351
- 26351A/H
- 26357
- 26357A
- 26357A/E
- 26357B/E
- 26358
- 26358A
- 26358A/H
- 26358B/H
- 26359
- 26359A/F
- 26359B/F
- 26360
- 26360A/F
- 26360B/F
- 26361
- 26361A/E
- 26365
- 26365A/F
- 26366
- 26366A/F
- 26369
- 26369A/J
- 26374
- 26374A/F
- 26376
- 26376A/L
- 26378
- 26378A/H
- 26395
- 26395A
- 26395A/H
- 26395B
- 26395D
- 26395D/E
- 26395E
- 26395F
- 26408
- 26408A/D
- 26408A/E
- 26409
- 26409A/D
- 26409A/E
- 26409B/D
- 26410
- 26410A/B
- 26411
- 26411A/B
- 26414
- 26414A/E
- 26414E
- 26423
- 26423A/D
- 26430
- 26430A/D
- 26431
- 26431A/B
- 26436
- 26436A/B
- 27315
- 27315A/B
- 27315A/E
