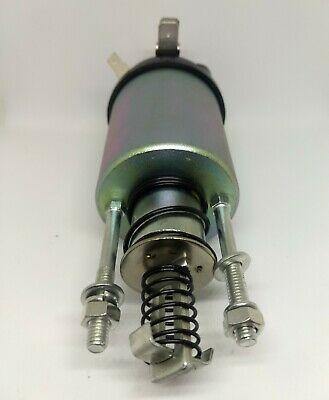

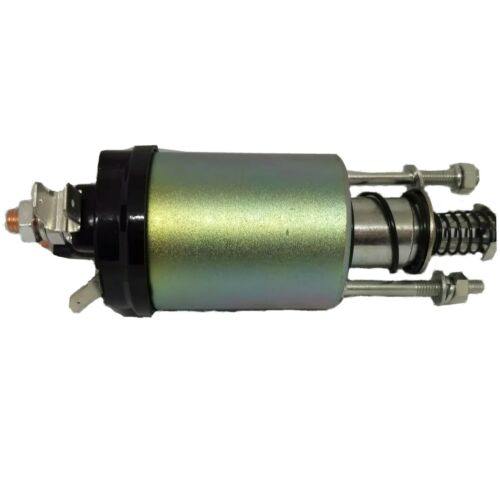

12v STARTER MOTOR SOLENOID REPLACES LUCAS MARELLI M127 WOOD AUTO
SND1441
133531
THIS IS A NEW SOLENOID TO FIT TO LUCAS M127 TYPE STARTERS

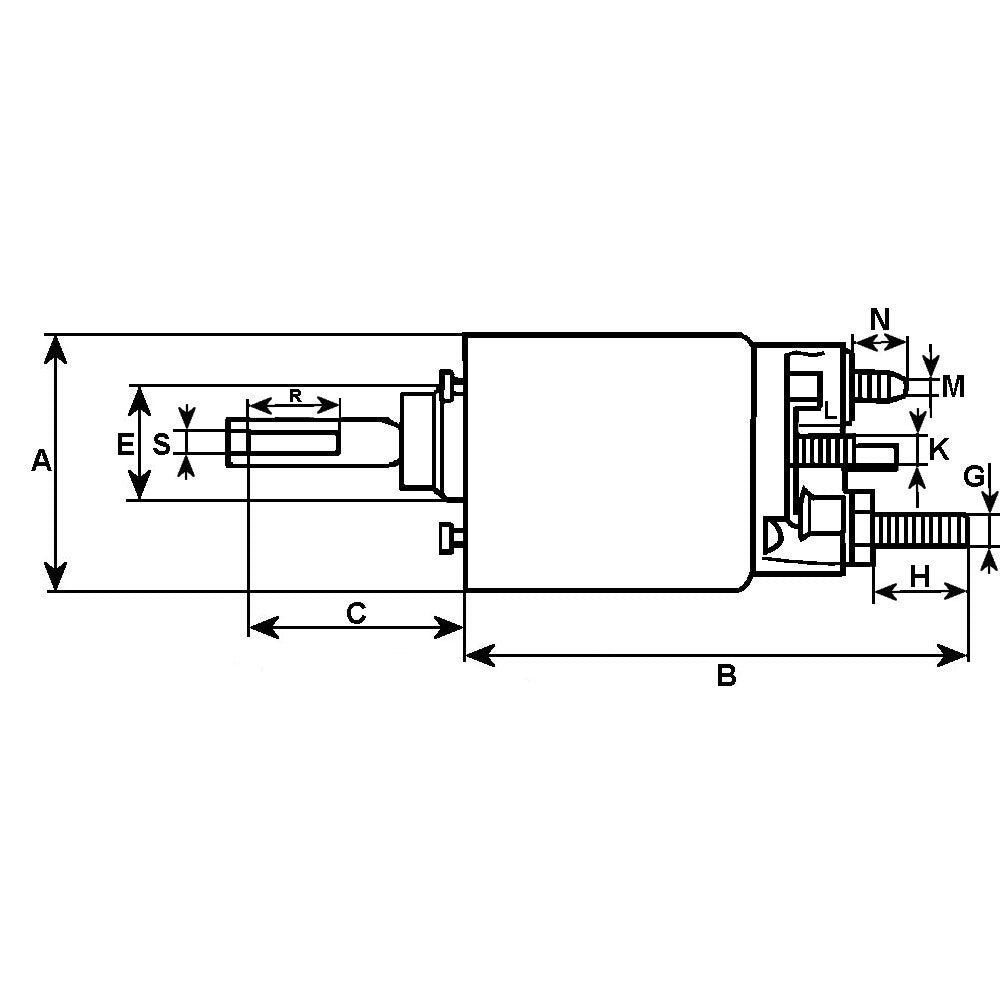

Electrical information
- Voltage 12
- A OD mm 53.85

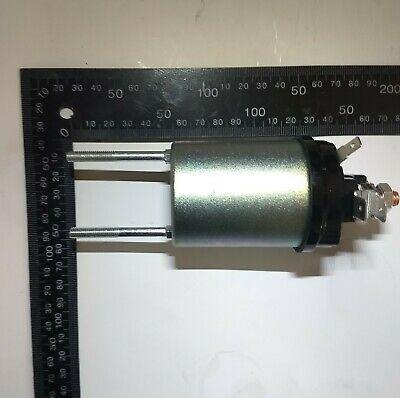

- B Total length mm 181.00

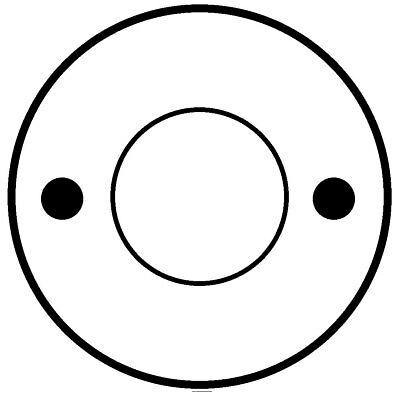

- No./mount. holes 2
- H Mount. hole 2 45
- E ID/cover mm 25.90

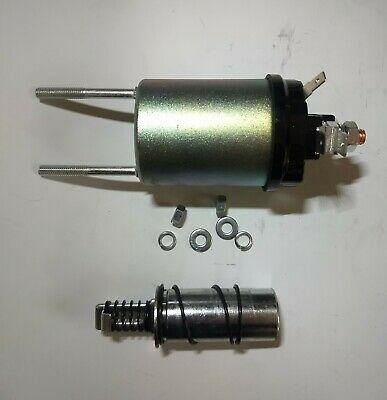

- Plunger information
- Q Length mm 92.35
- Fork Lever w/o
- S ID/eye 5.45
- D OD/cover mm 60.00
- G B+ M8
- Height/B+ 13.00
- M Coil bolt M8
- N Coil bolt l. 13.00

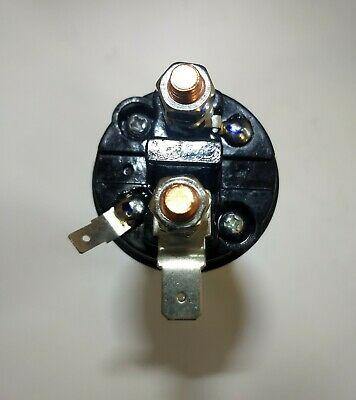

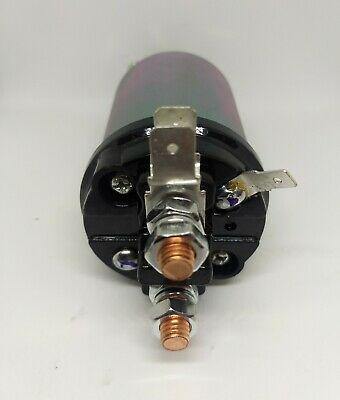

- No./terminals 3
- null
- Terminal 50/mm 6.30
Servicing M127
BELOW ARE THE SOLENOID O.E.M. CROSS REF NUMBERS TO THIS SOLENOID
Replacing
Lucas
- 000077121010
- 000077132010
- 000077133010
- 085541320010
- 085541322010
- 085541325010
PERKINS
- 28730188
- 28730189
- 60933111
Lucas
- 76397
- 77121
- 77131
- 77132
- 77133
- 77139
- 77141
- 77143
Marelli
- 85541320
- 85541322
- 85541325
Lucas
- SSL0005
- tpb104
- tpb111
- tpb116
- tpb118
- tpb119
ZM
- zm-1613
FITS UNITS
FIAT / MAGNETTI MARELLI
- 63227500 63227502 63227510
- 63227518 63227528 63227539
- 63227541 63227547 63227564
- 63227565 63227568 63227569
- 63227570 63227571 63227572
- 63227574 63227578 63227582
- 63227583 63227584 63227585
- 63227588 63227589 63227590
- 63227591 63227592 63227593
- 63227594 63227596 63227597
- 63227598 63227599 63227600
LUCAS
- 27500 27500A 27500A/J
- 27502 27502A 27502A/D
- 27503 27503A 27503A/D
- 27504 27504A 27504A/B
- 27509 27509A 27509A/B
- 27513 27513A 27514
- 27514A 27514A/B 27515
- 27515A 27515A/E 27516
- 27516A 27516A/D 27518
- 27518A/B 27518A/E 27518B
- 27518E 27519 27519A
- 27519A/D 27520 27520A
- 27520A/D 27521 27521A
- 27521A/B 27522 27522A
- 27522A/D 27523 27523A
- 27523A/D 27524 27524A/B
- 27525 27525A 27525A/B
- 27526 27526A 27526A/D
- 27527 27527A 27527A/B
- 27528 27528A 27528A/D
- 27537 27537A 27537A/B
- 27538 27538A 27538A/D
- 27539 27539A 27539A/F
- 27540 27540A 27540A/H
- 27541 27541A 27541A/D
- 27545 27545A 27545A/B
- 27547 27547A 27547A/D
- 27559 27559A 27559A/E
- 27564 27564A 27564A/F
- 27564F 27565 27565B/D
- 27568 27568A
ANOTHER HIGH QUALITY PRODUCT FROM WOOD AUTO
