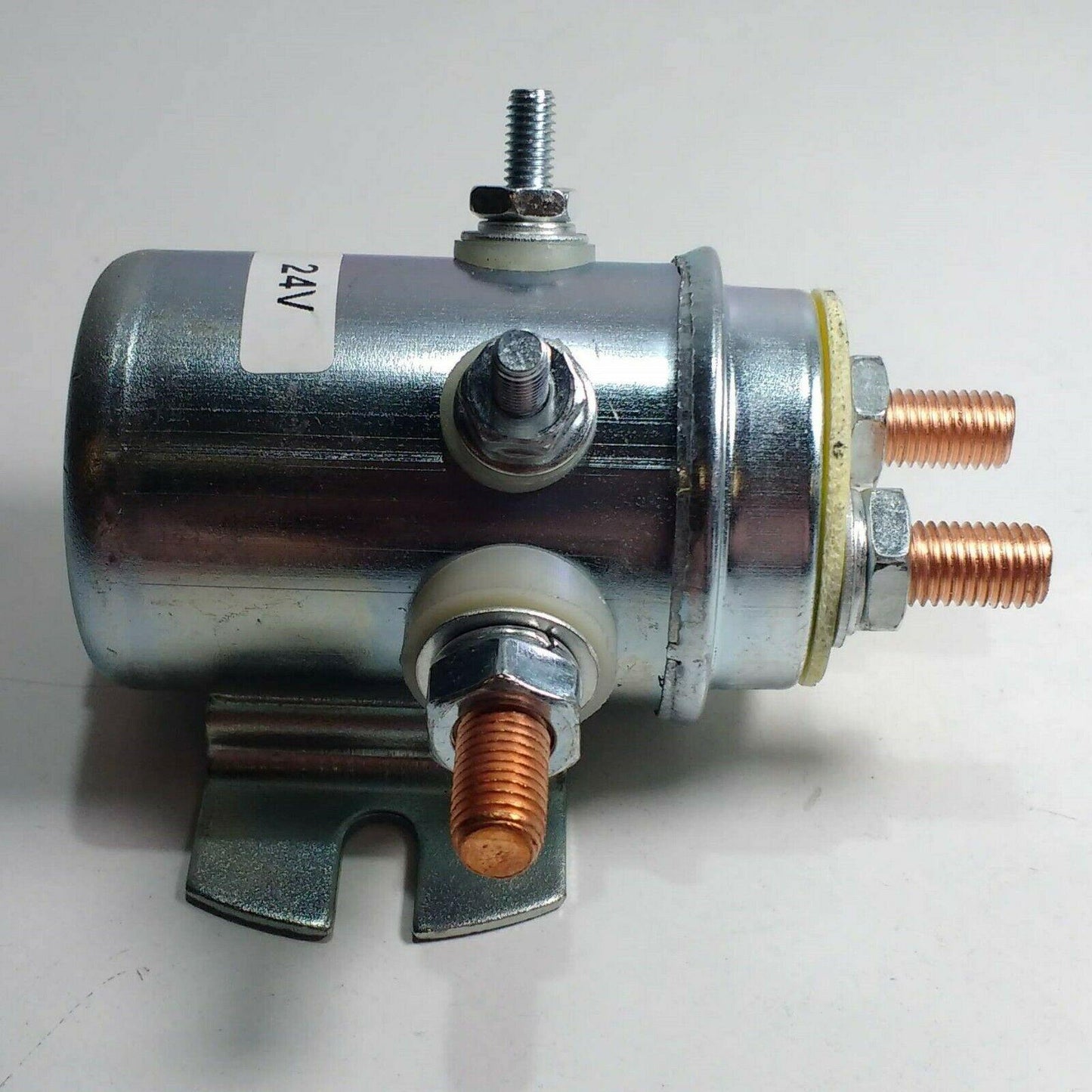

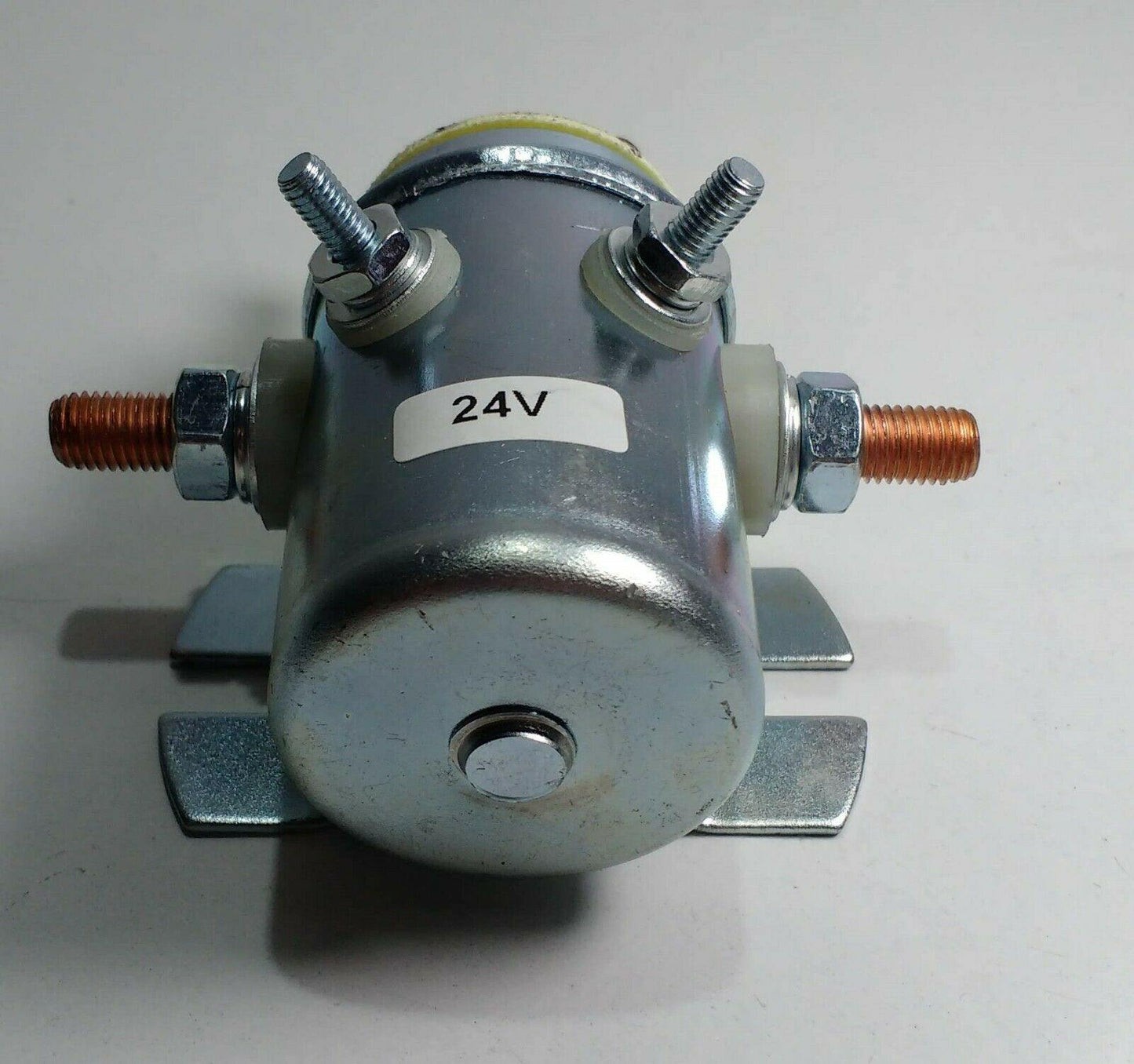

Universal Change Over Solenoid M8 50A Continuous 24V Winch Wood Auto
SND12007
133617
This is a high-quality insulated return changeover solenoid manufactured by Wood Auto, designed for winches and similar applications. Ideal for heavy-duty or intermittent use, it ensures reliable switching and protection of electrical circuits.
Key Features:
- Compatibility: Winches and similar 24V applications
- Terminals: 6
- Voltage: 24V
- Intermittent Load: 50A for 5 seconds
- Remarks: Insulated return design, for reversing direction on winch motors two units may be required

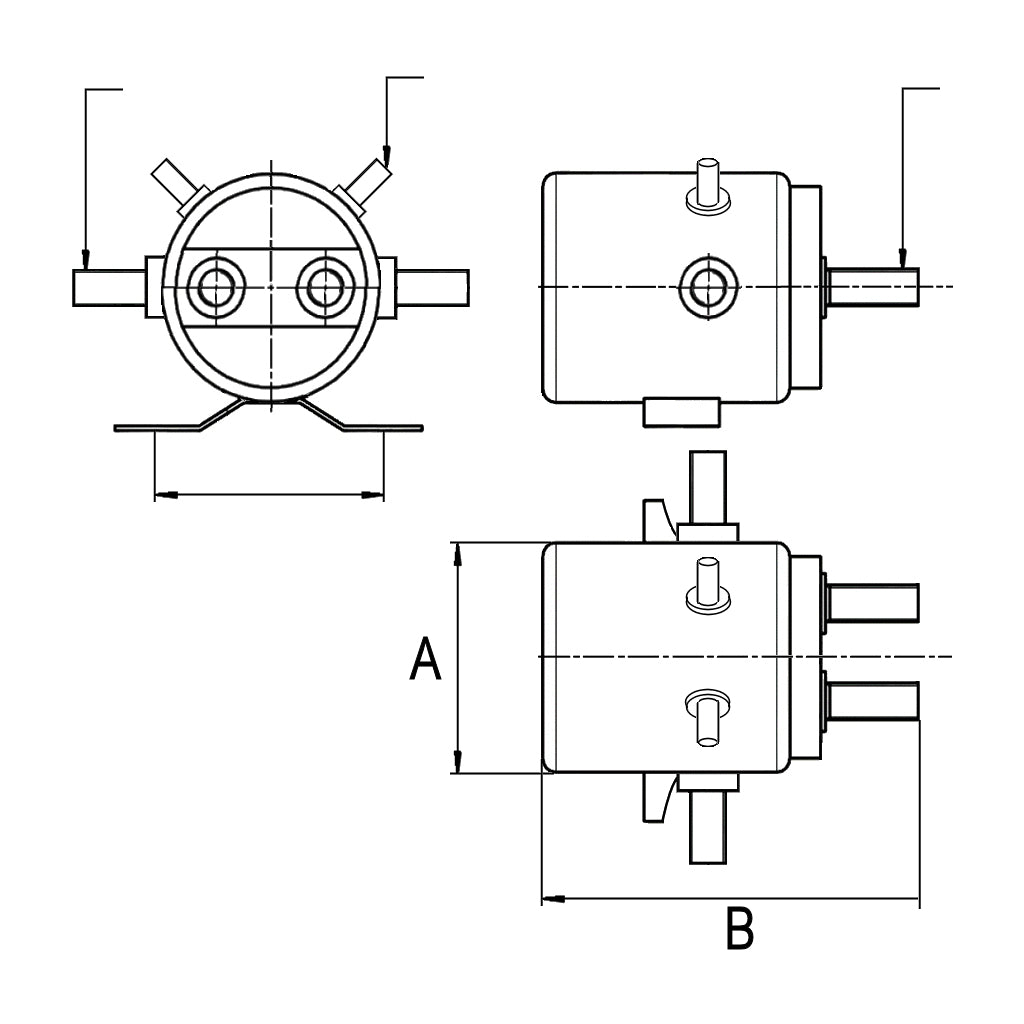

Technical Specifications:
- A OD: 41.70 mm
- B Total Length: 88.85 mm
- Bracket D OD / Cover: N/A
- B+ (G): M8
- Height / B+ (H): 17.30 mm
- Coil Bolt (M): M8
- Coil Bolt Length (N): 17.30 mm
- Width / Kl. 15a (I, J): 10.75 mm
- Width / Kl. 50 (K, L): 10.75 mm
Another high-quality product by Wood Auto
- * All products come with 12 months warranty unless otherwise stated.
- * Please contact us with any issues so we can provide a solution for you.
