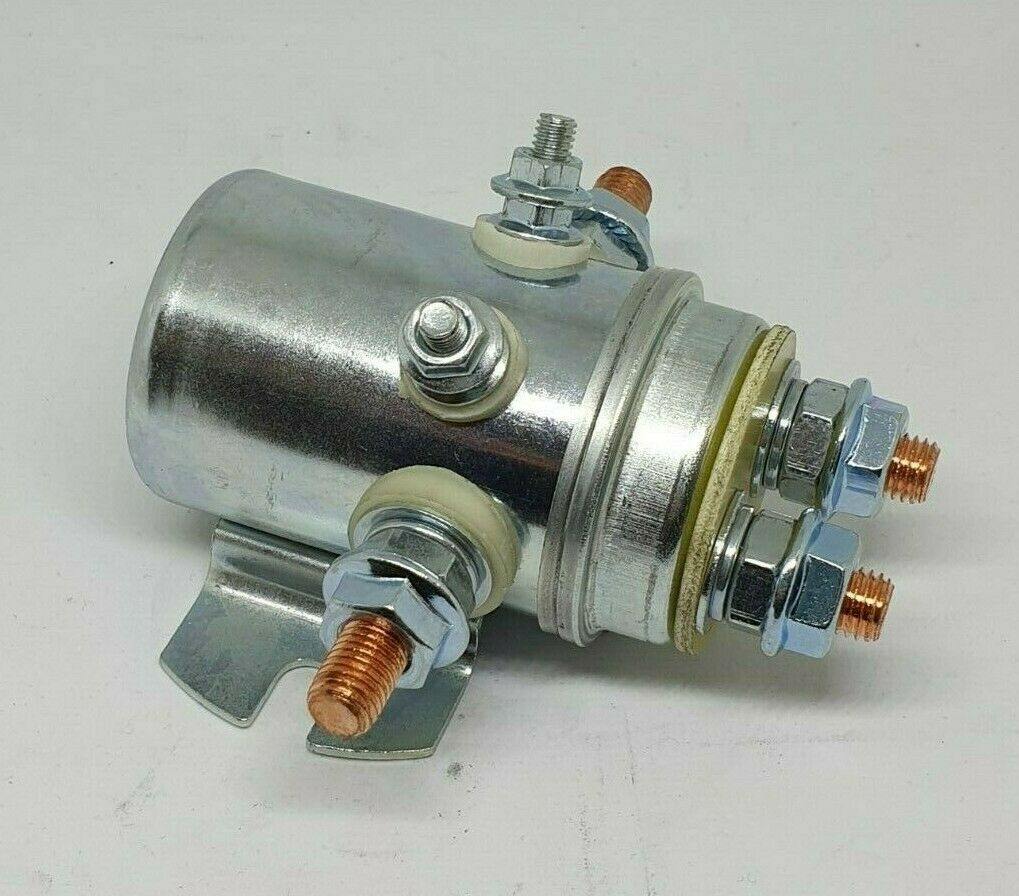

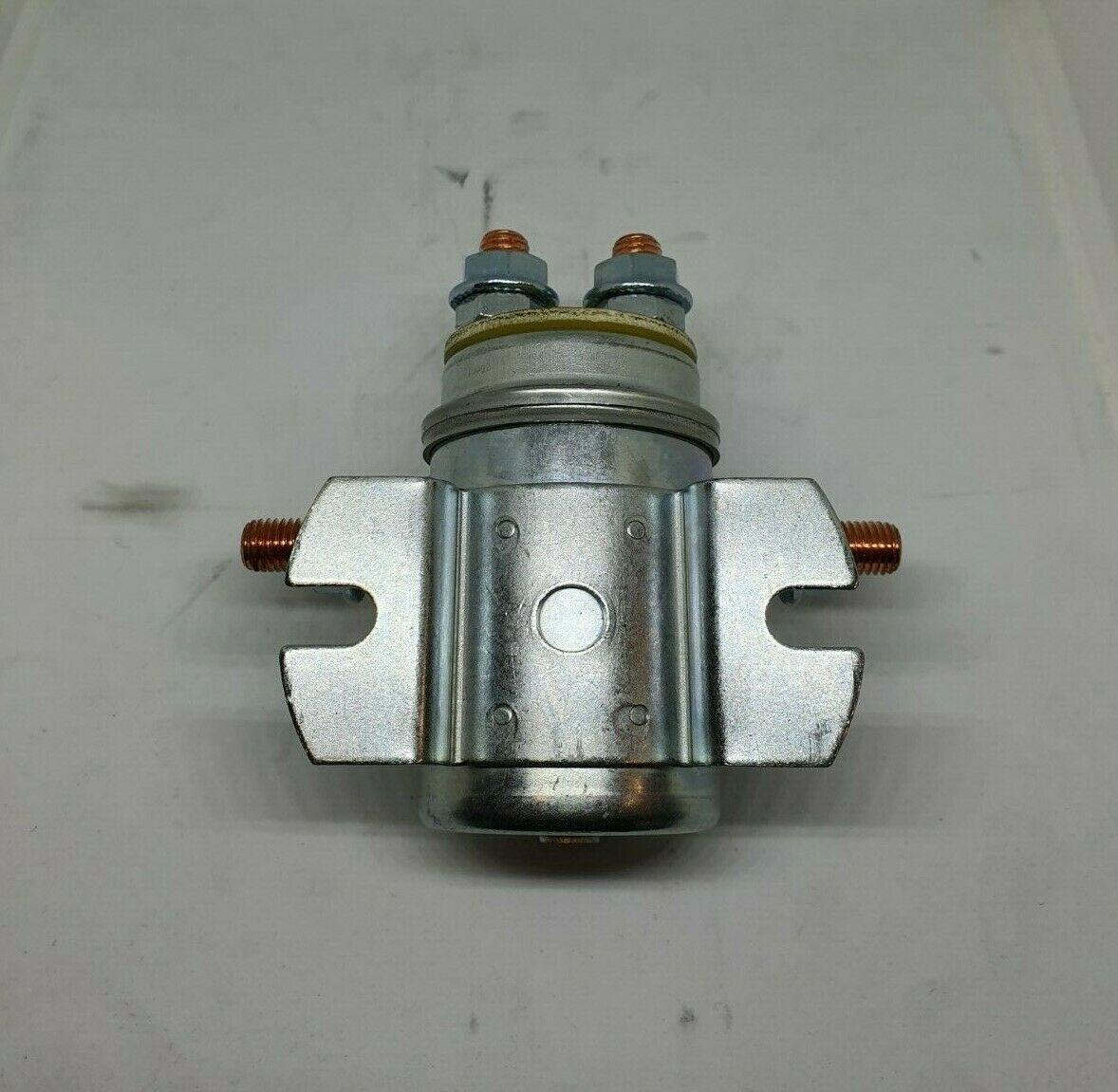

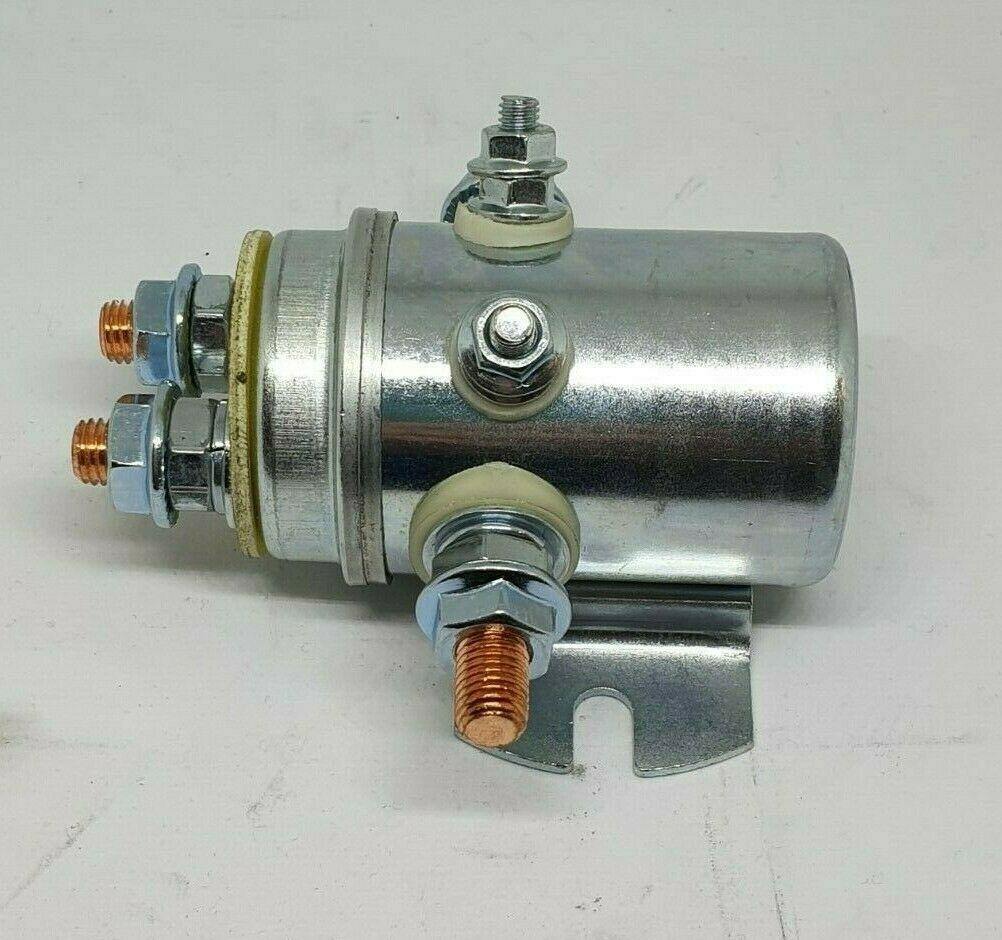

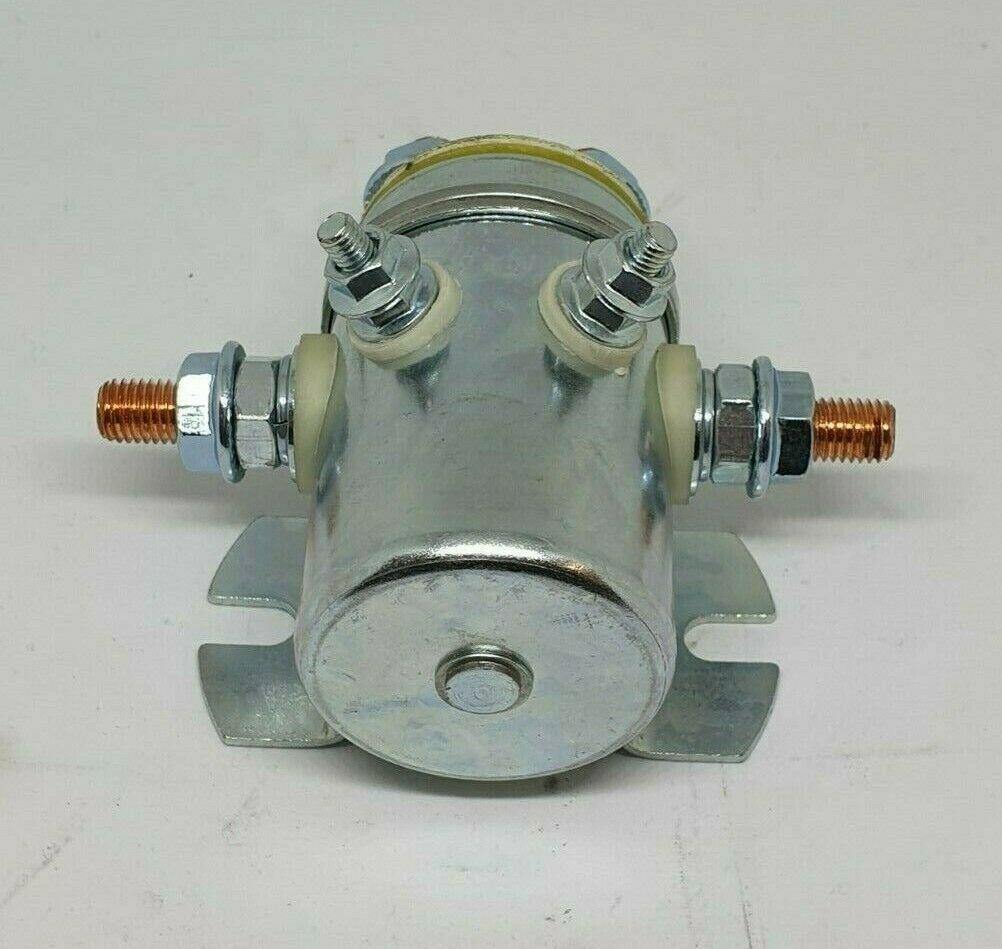

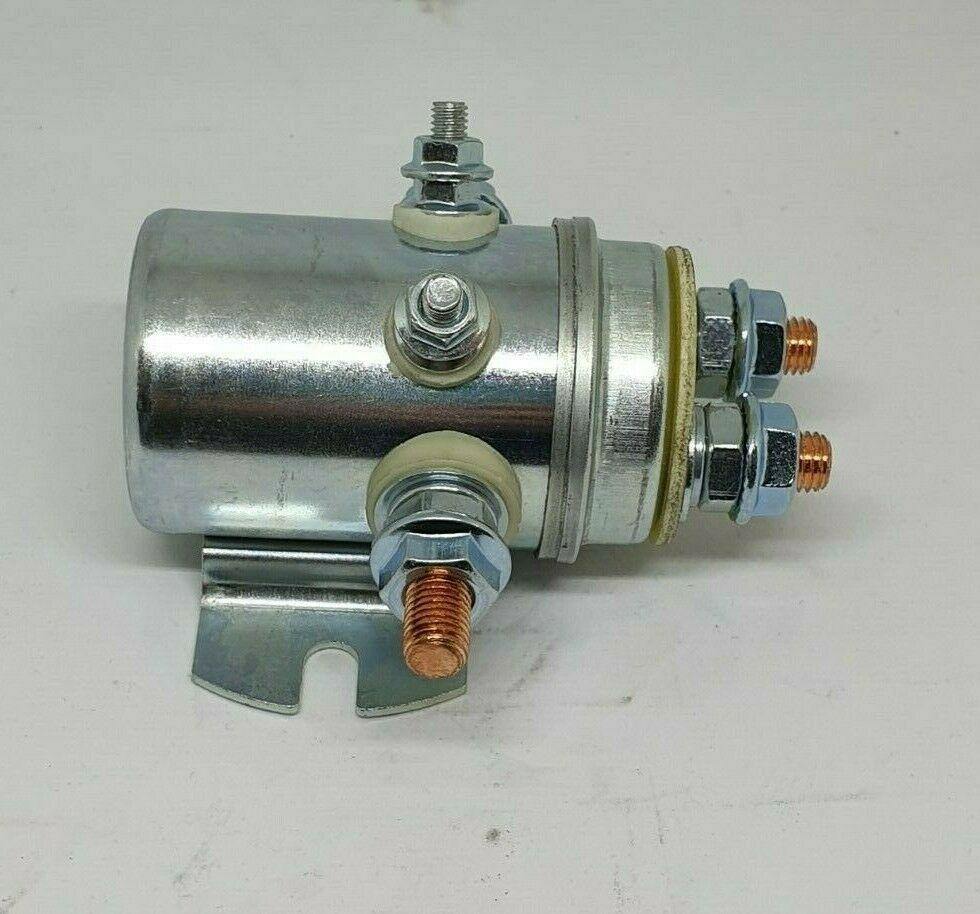

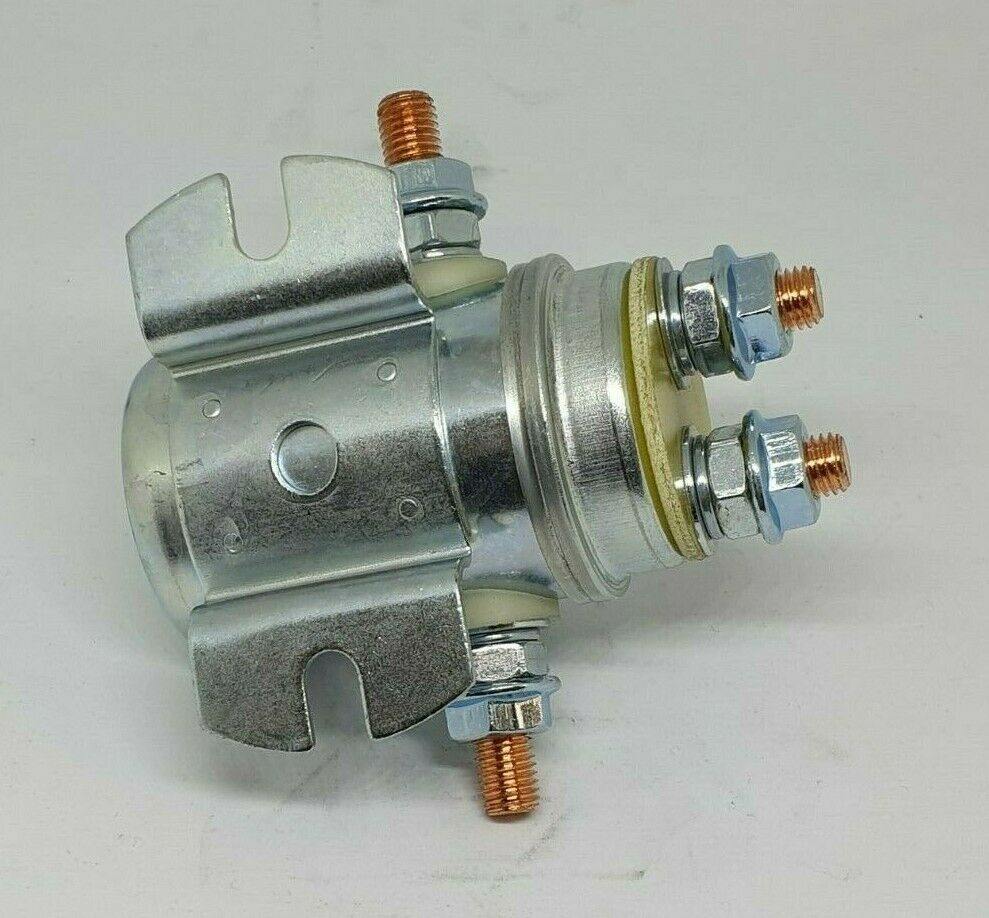

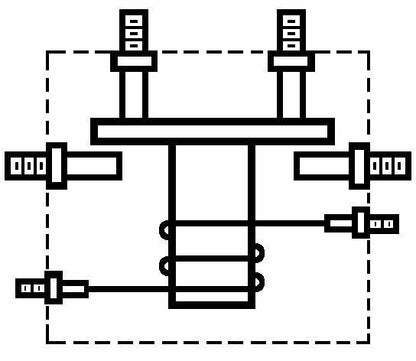

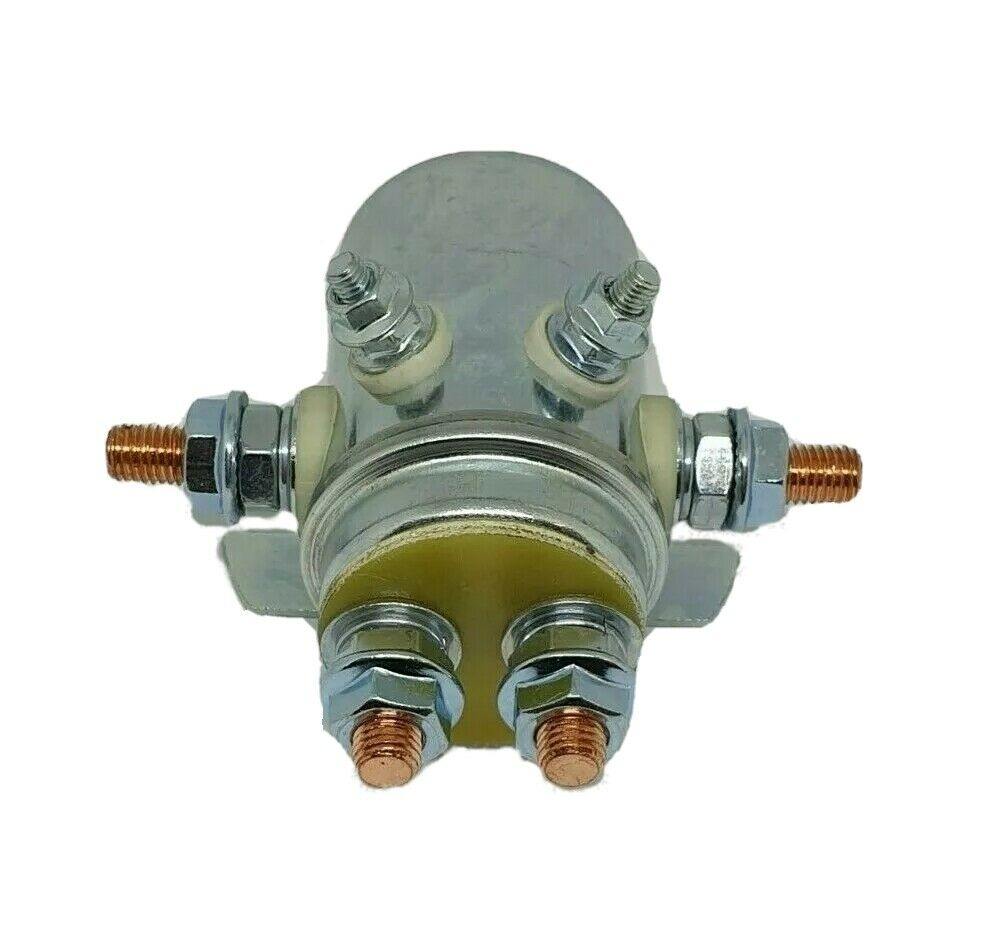

12v CHANGEOVER SOLENOID Insulated Return HEAVY DUTY, FOR WINCH MOTORS TAIL LIFTS ETC.
SND12123
138068
Electrical specifications
- Voltage 12
- A 200
- Intermittent load 900 Amp. Seconds 5

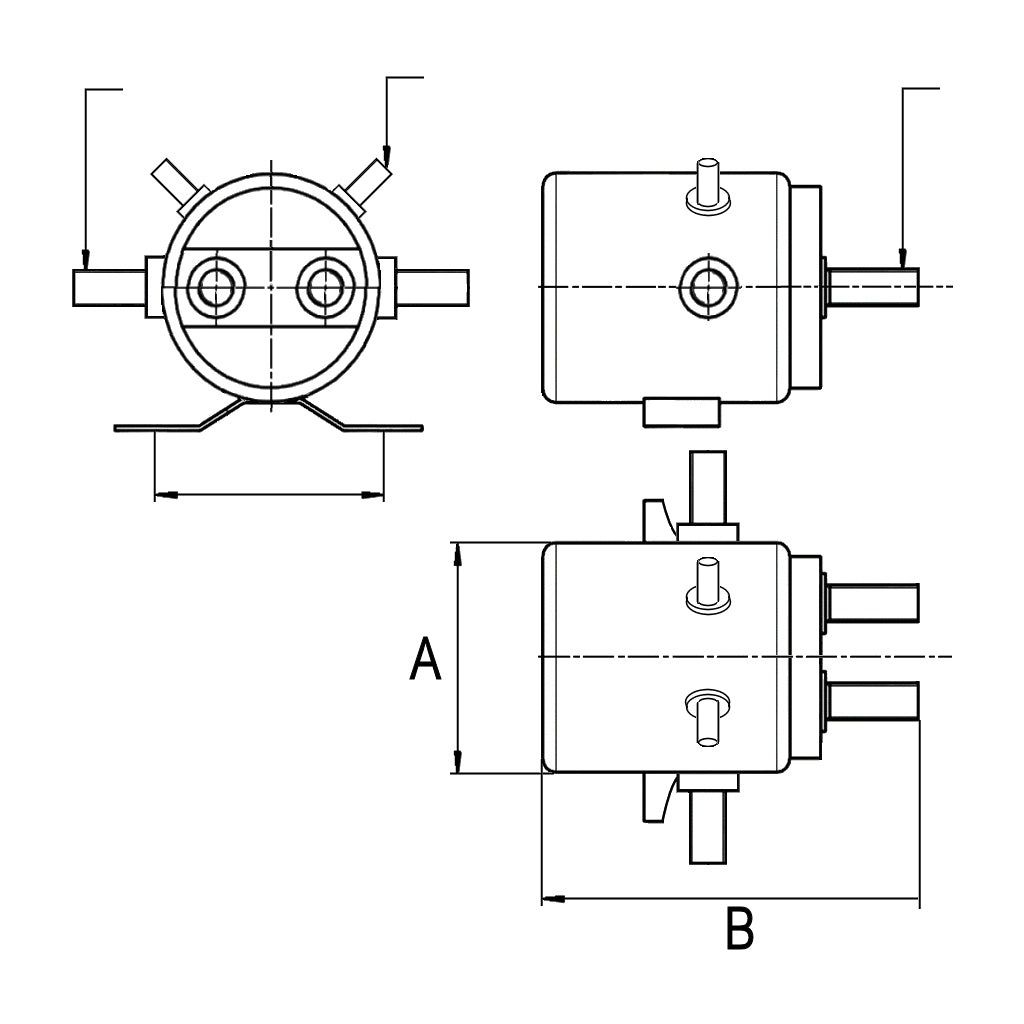

Physical specifications
- A OD 42.00
- B Total length 89.35
- M Coil bolt 5/16" UNF
- G B+ 5/16" UNF
- H Height/B+ 12.00
- K Kl. 50/mm 10-32 UNF
- N Coil bolt l. 12.00
- L Width/kl. 50 8.00
- Bracket
- No./terminals 6
Further information
- Silver contact.
- (if needed to change direction on a winch type motor you will need 2 of these)
OEM REFERENCE
- BUTEC/PRESTOLITE 15323
- BUTEC/PRESTOLITE 15386
- BUTEC/PRESTOLITE SBD4201A
- BUTEC/PRESTOLITE SBD4201G
- DELCO/FORD 1114218
- DELCO/FORD 1114223
- DELCO/FORD 1114534
- UNITED TECH. S051189
- UNITED TECH. SO51189
ANOTHER HIGH QUALITY WOOD AUTO PRODUCT
