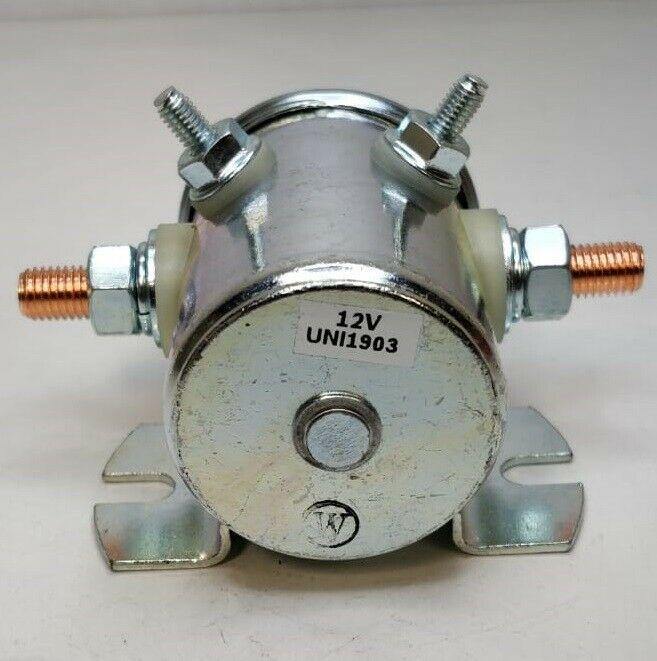

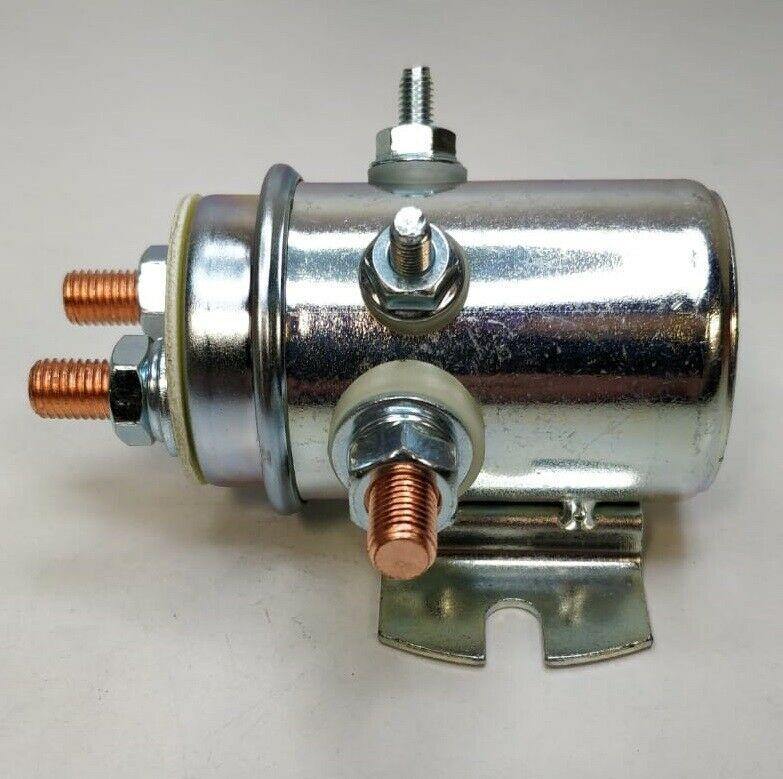

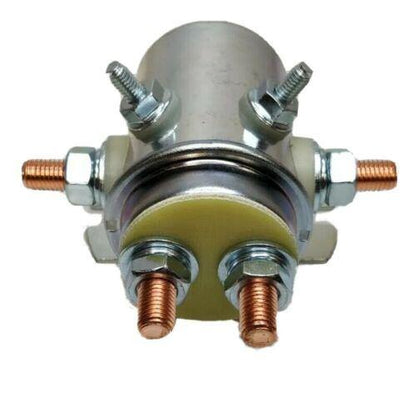

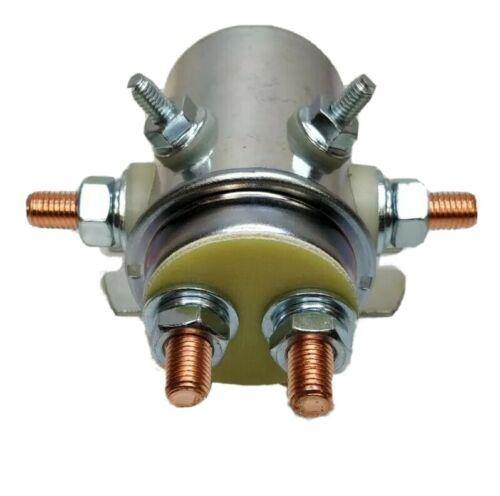

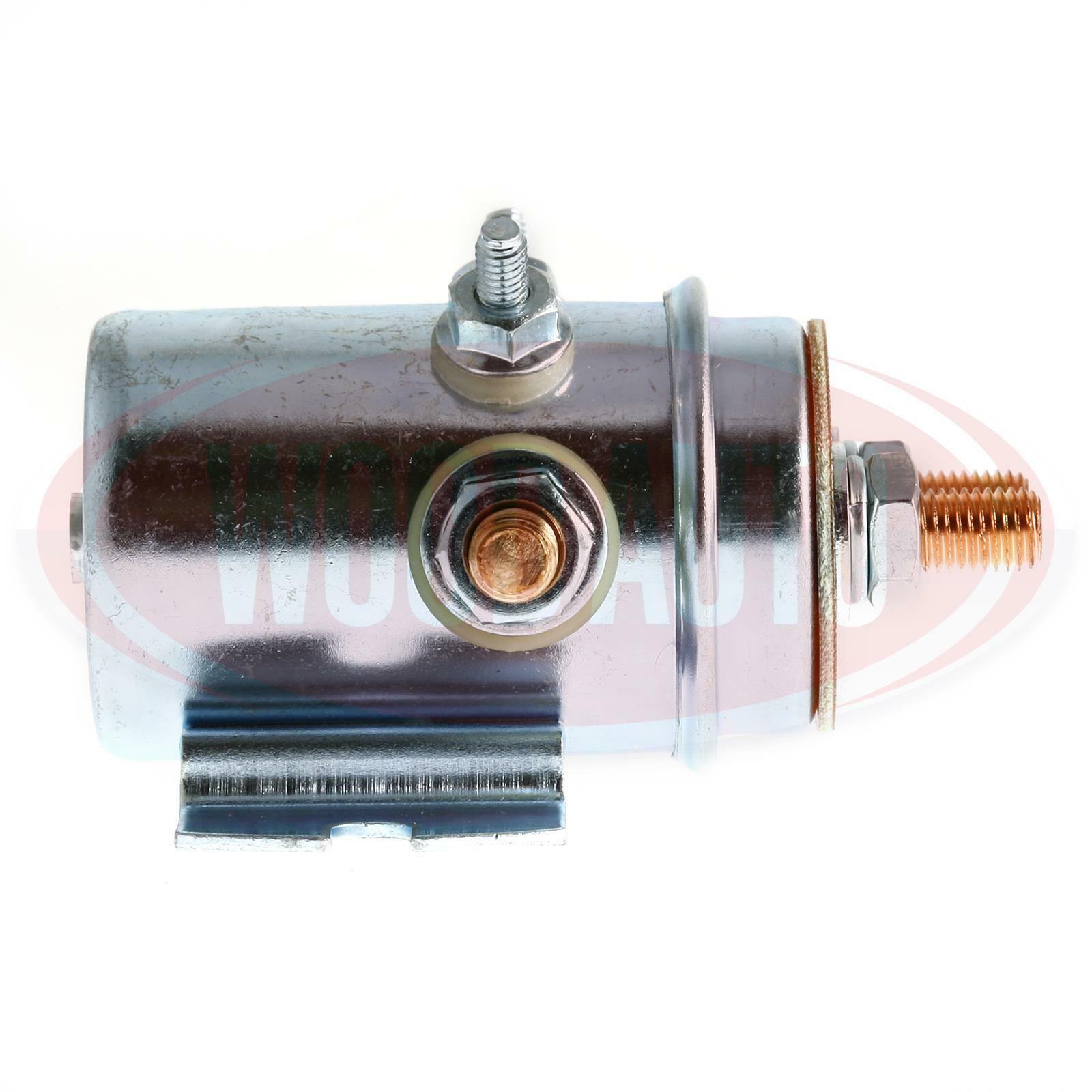

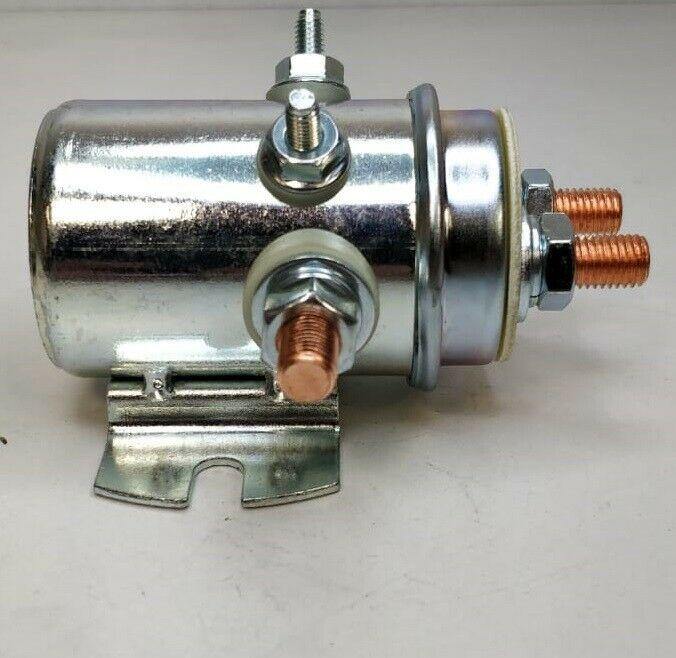

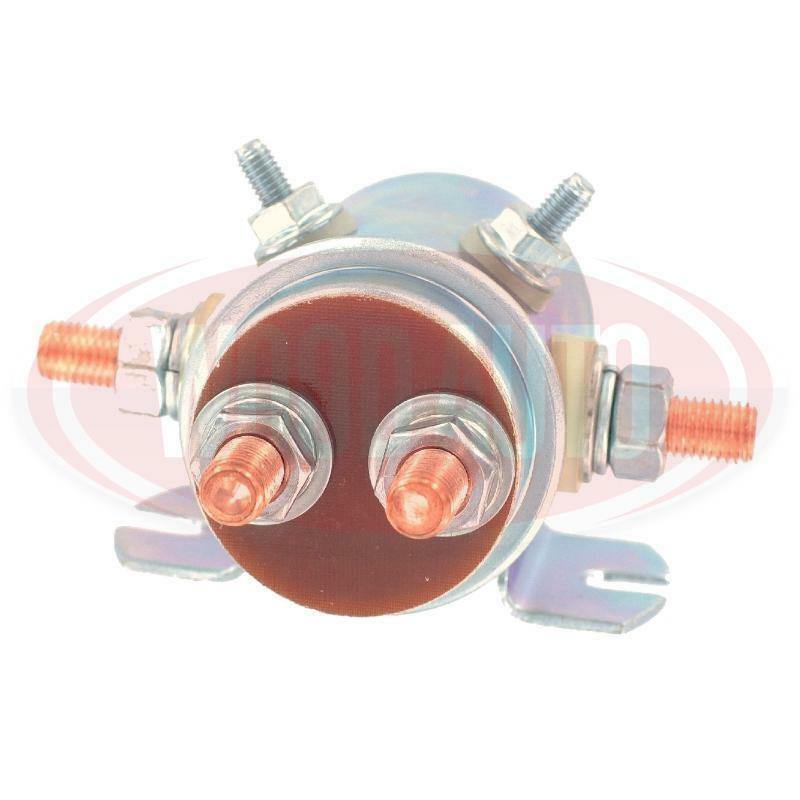

Universal Changeover Solenoid 6 Terminals 80A 150A 12V Winch Wood Auto Snd12005

CHANGEOVER SOLENOID Insulated Return, FOR WINCH MOTORS TAIL LIFTS ETC.

SND12005

Bracket

• M Coil bolt M8
• G B+ M8
• H Height/B+ 18.00
• I Kl. 15a/mm M5
• K Kl. 50/mm M5
• N Coil bolt l. 10.00
• J Width/kl. 15a 11.45
• L Width/kl. 50 11.45
• Bracket
• No./terminals 6

Electrical specifications

• Voltage 12
• A 80
• Intermittent load 150 Amp.
• Seconds 5

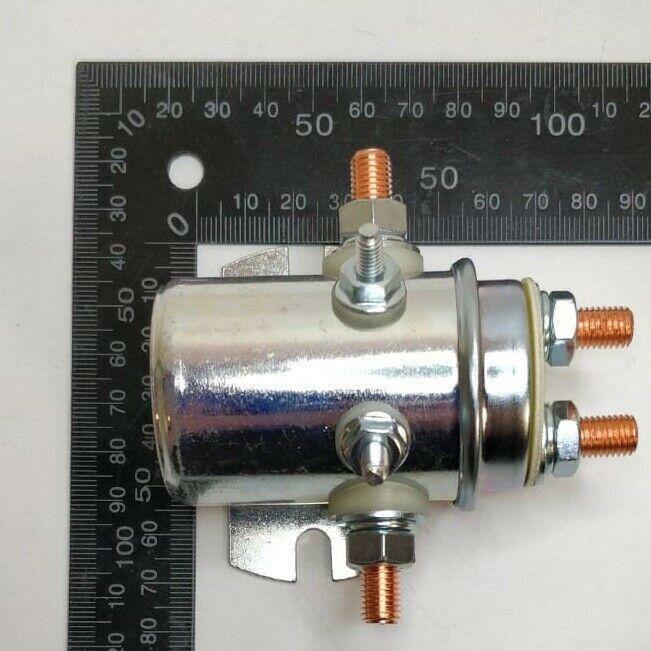

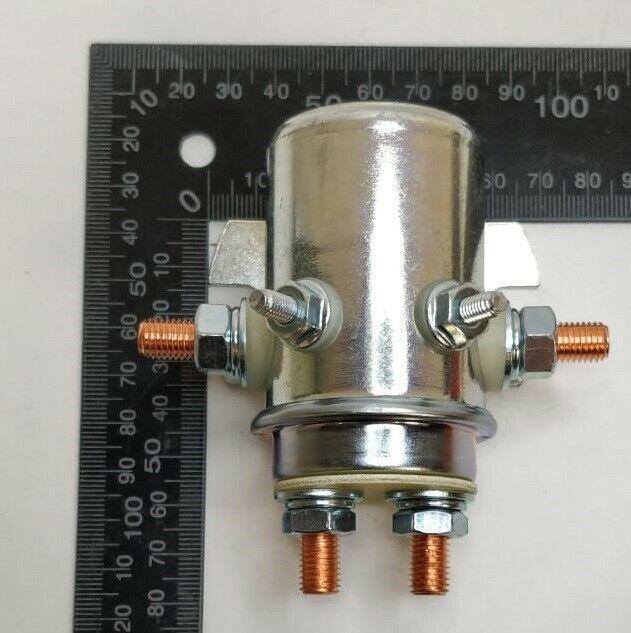

Physical specifications

• A OD 41.85
• B Total length 89.65

Further information

• Insulated return. Silver contact.
• (if needed to change direction on a winch type motor you will need 2 of these)

ANOTHER HIGH QUALITY WOOD AUTO PRODUCT
