Universal Solenoid Lawn Mower Tractor 80A 5+16" Studs 12V Wood Auto
SND12301
234071

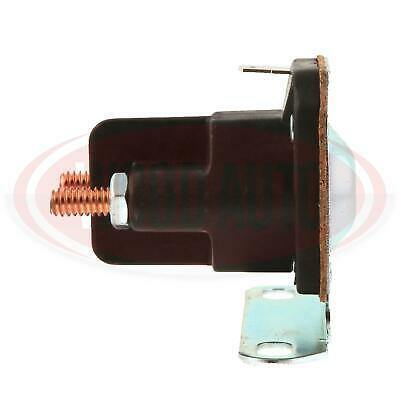

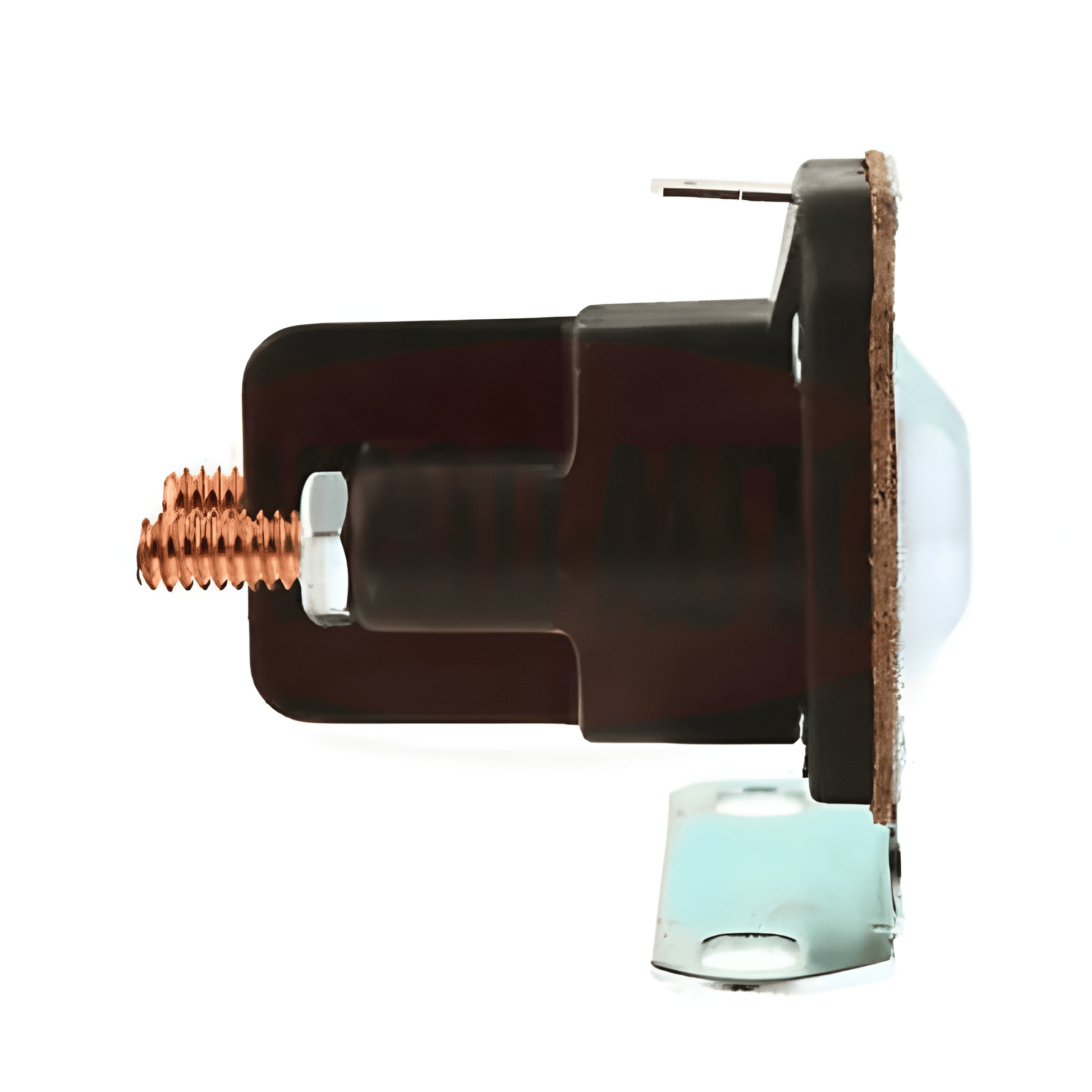

This is a high-quality 12V bulkhead solenoid manufactured by Wood Auto, designed for lawn, garden, and small engine applications. It features a robust 80A capacity and three terminals for reliable electrical performance.
Key Features:
- Compatibility: Lawn, garden, and small engine equipment
- Voltage: 12V
- Current Rating: 80A
- Terminals: 3 (2 main 5/16" threaded posts + 1 Lucar terminal)
- Bracket: 2-hole fixing

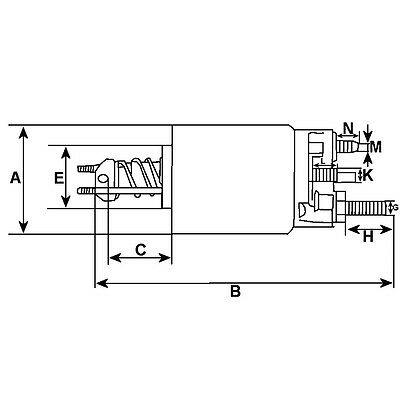

Technical Specifications:
- B Total Length: 64.25 mm
- Bracket & Coil Bolt: 5/16"-24
- B+ (G): 5/16"-24
- Height / B+ (H): 16.70 mm
- Kl. 50 / K: 6.3 mm
- Coil Bolt Length (N): 16.70 mm
- Width / Kl. 50 (L): 11.15 mm

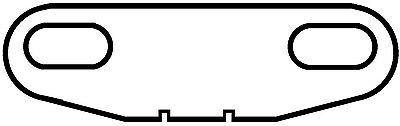

- Bracket Fixing: 55 mm hole centers, approx. 40 mm x 56 mm square x 60 mm high
Another high-quality product by Wood Auto
- * All products come with 12 months warranty unless otherwise stated.
- * Please contact us with any issues so we can provide a solution for you.
-
