Universal Solenoid Tail Lifts Winches Continuous 150A 12V Wood Auto SND12001

UNIVERSAL SOLENOID TAIL LIFTS WINCHES CONTINUOUS 150A 12v WOOD AUTO SND12001

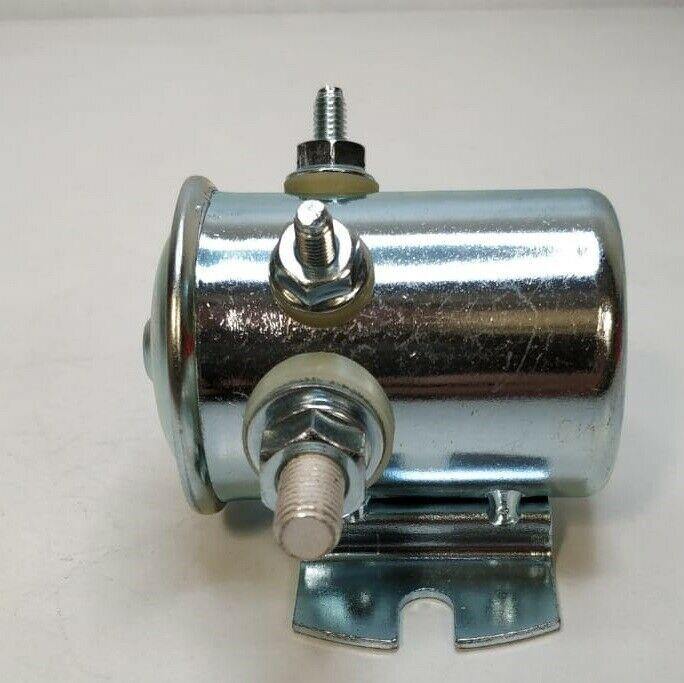

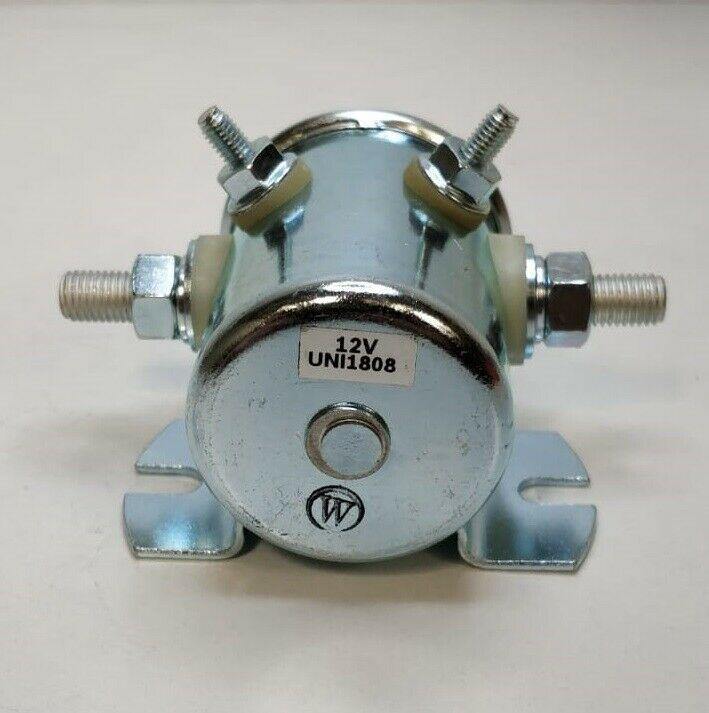

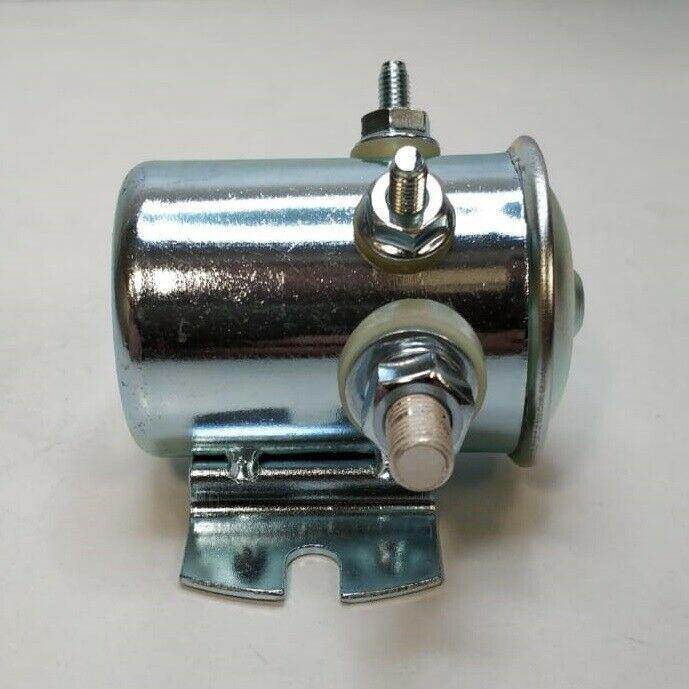

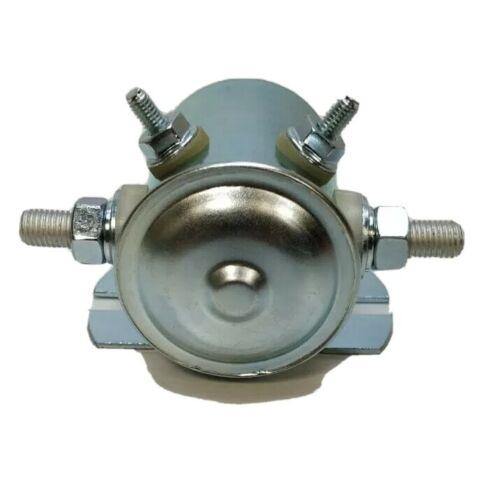

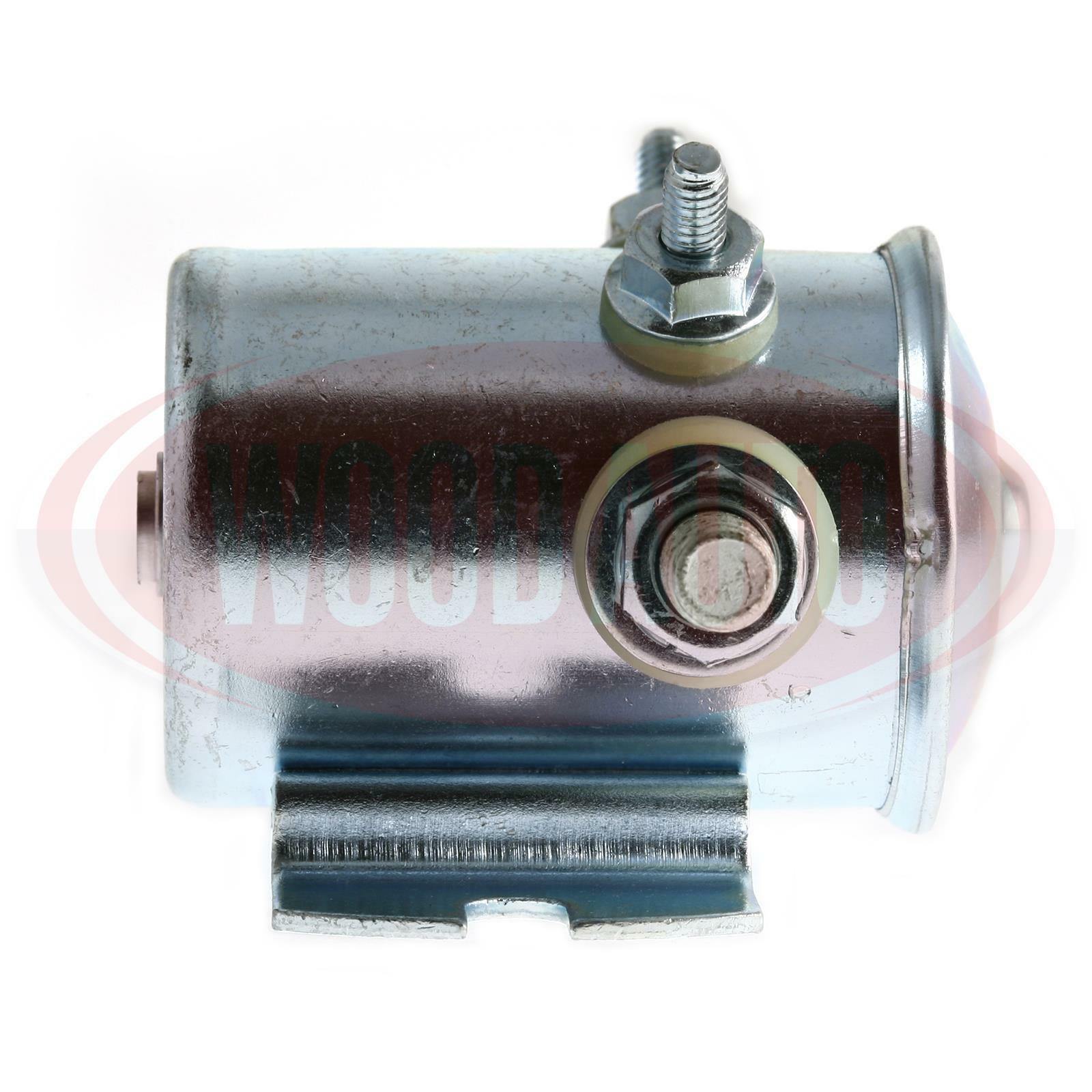

12V Universal Heavy Duty Bulk Head Solenoid

USED FOR WINCHES, TAIL LIFTS & TIPPERS ETC

SND12001 / 235442

Electrical information

• Voltage 12
• Amp 150
• Intermittent load 300 Amp.
• Seconds 5

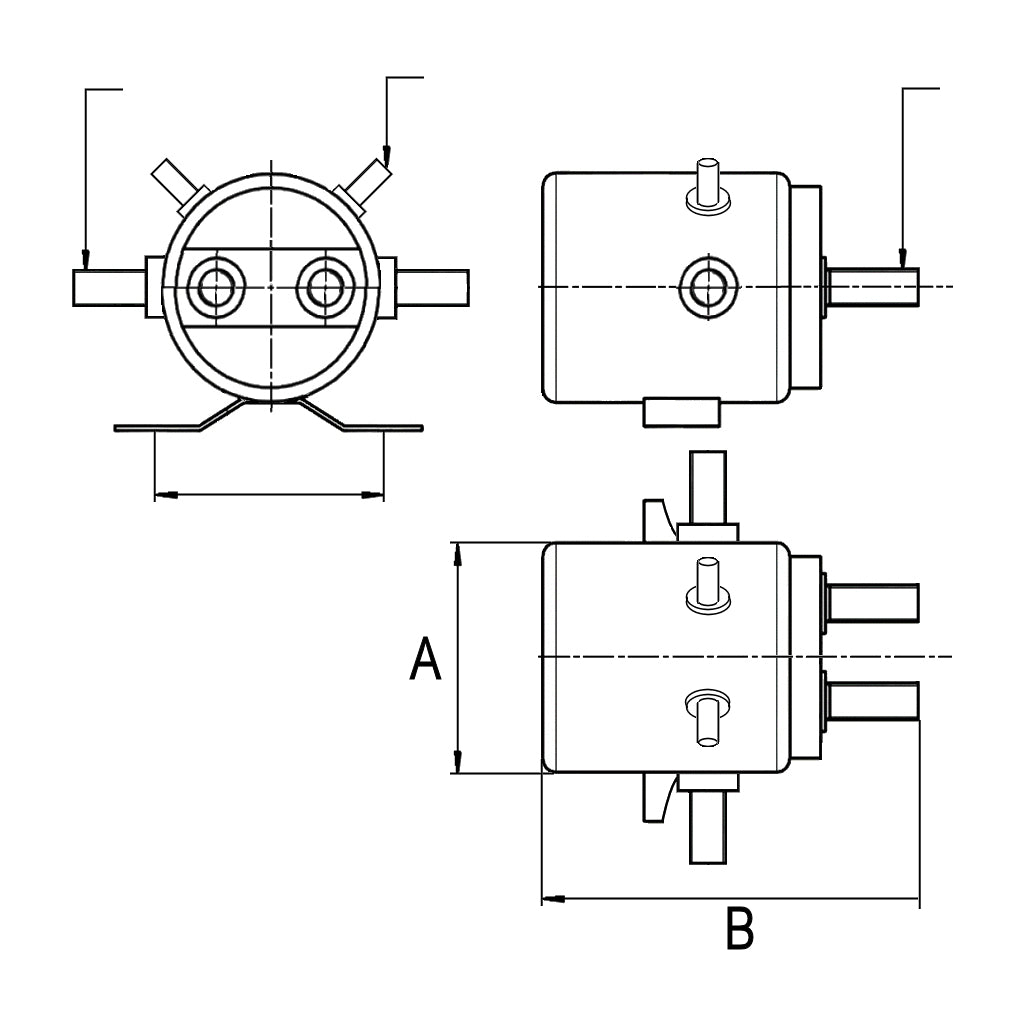

Physical information

• A OD mm 41.04
• B Total length mm 65.86
• No./mount. holes 2
• H Mount. hole 2 15
• H Mount. hole 3 45

Bracket information

• G B+ M8
• Height/B+ 14.45
• No./terminals 4

Remarks:

• Silver contact
• Insulated return.

For non insulated, connect one of the small winding terminals to an earth

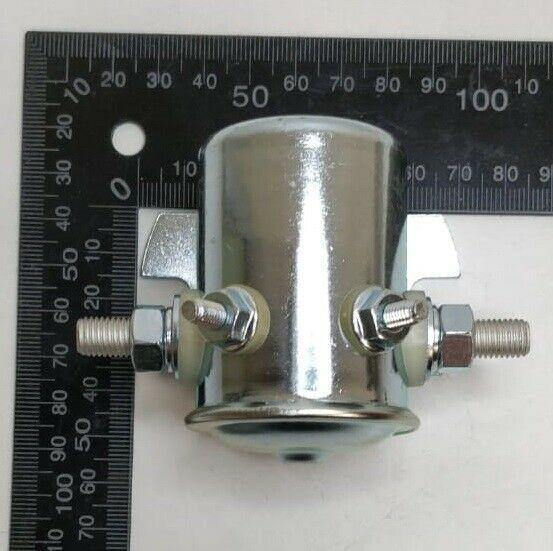

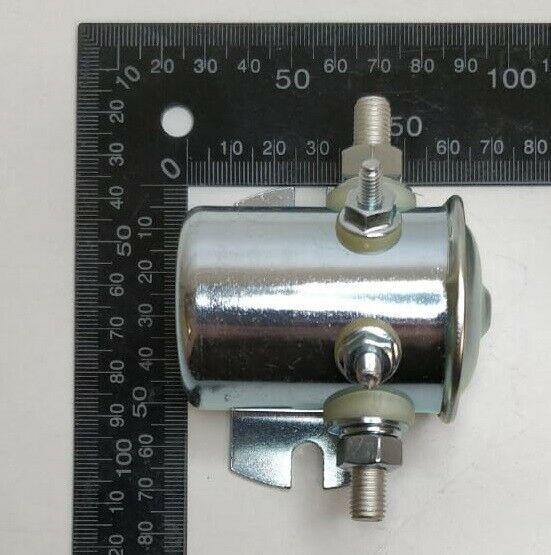

DIMENSIONS:

• 42MM DIA
• 66MM TALL
• BRACKET MOUNT
• MOUNTING DISTANCE CUT OUT SLOTS MEASURE
• FROM 50MM TIGHTEST TO 70MM WIDEST

ANOTHER HIGH QUALITY WOOD AUTO PRODUCT
