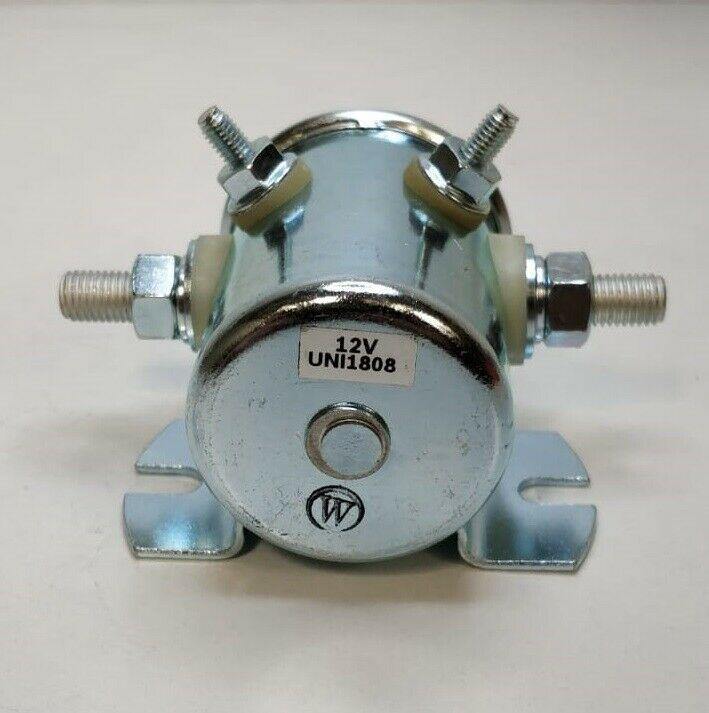

• Current Care 12-012A universal 80A 12V continuous rated solenoid for tail lifts and winches silver metal
  • CurrentCare 12-012A Universal Solenoid for Tail Lifts Winches continuous rated 80A 12V Dimensions shown
  • Silver Current Care universal solenoid for tail lifts and winches 80A 12V continuous rated
  • CurrentCare 12V 80A universal solenoid for tail lifts and winches silver with three threaded posts
  • CurrentCare 12-012A universal solenoid for tail lifts and winches silver continuous rated 80A 12V
  • Current Care 12V 80A continuous rated solenoid for tail lifts and winches silver metallic finish

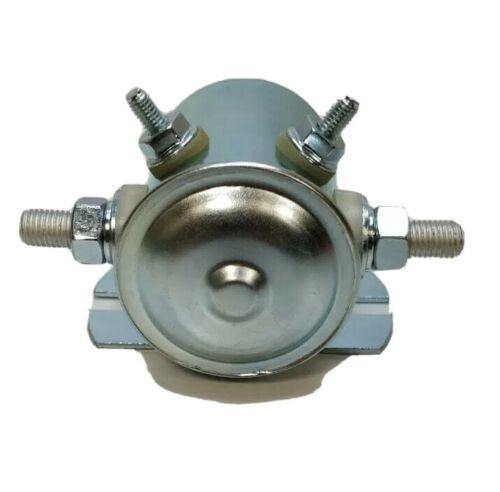

  • Current Care 12-012A universal 80A 12V continuous rated solenoid for tail lifts and winches chrome finish

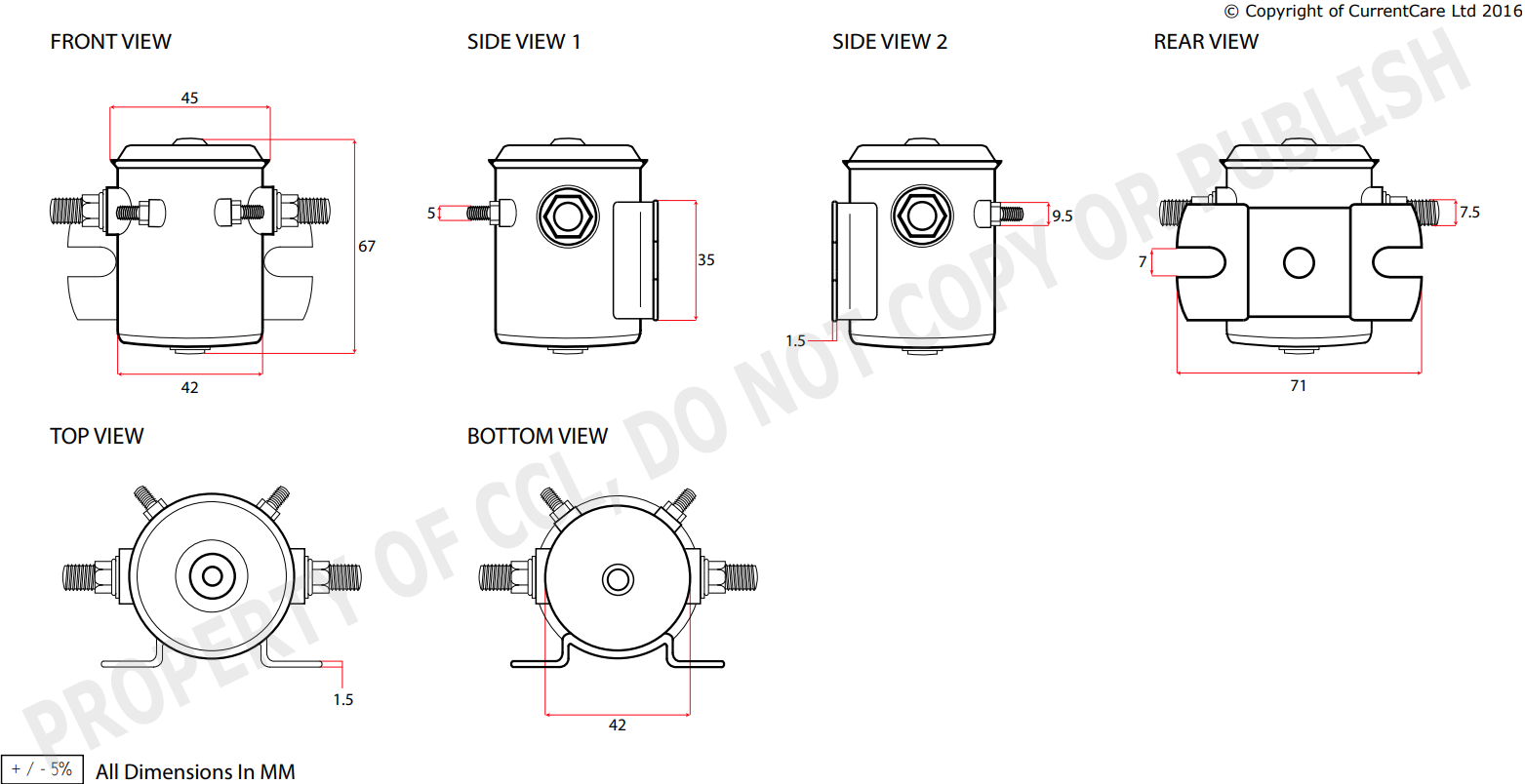

  • Technical drawing of the Current Care 12-012A universal solenoid for tail lifts and winches showing dimensions
1 8

Universal Solenoid Tail Lifts Winches Continuous Rated 80A 12V CurrentCare 12-012A

Universal Solenoid Tail Lifts Winches Continuous Rated 80A 12V CurrentCare 12-012A

Vendor:Current Care

Availability: Low stock: 10 left

Product Type:12-012A

Product Indentifier:7426994757868

£24.86 inc VAT £20.72 ex VAT
£31.07 £24.86 inc VAT £20.72 ex VAT
Sale Sold out
Shipping calculated at checkout.
View full details

UNIVERSAL SOLENOID TAIL LIFTS WINCHES CONTINUOUS 150A 12v CURRENT CARE

12-012A

132939

Electrical information

  • Voltage 12
  • Continous: 80A
  • Peak: 150A
  • Seconds 5

Physical information

  • A OD mm 41.04
  • B Total length mm 65.86
  • No./mount. holes 2
  • H Mount. hole 2 15
  • H Mount. hole 3 45

Bracket information

  • G B+ M8
  • Height/B+ 14.45
  • No./terminals 4

Remarks:

  • Silver contact
  • Insulated return.

For non insulated, connect one of the small winding terminals to an earth

DIMENSIONS:

  • 42MM DIA
  • 66MM TALL
  • BRACKET MOUNT
  • MOUNTING DISTANCE CUT OUT SLOTS MEASURE
  • FROM 50MM TIGHTEST TO 70MM WIDEST

ANOTHER HIGH QUALITY CURRENT CARE PRODUCT
