WAS 12/24V Front Clear Slimline LED Marker Lamp – IP66, E & EMC Approved Maypole MP8776B

WAS 12/24V Front Clear Slimline LED Marker Lamp – IP66, E & EMC Approved

MP8776B

Product Details:

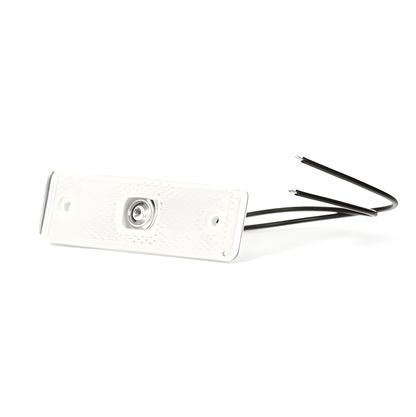

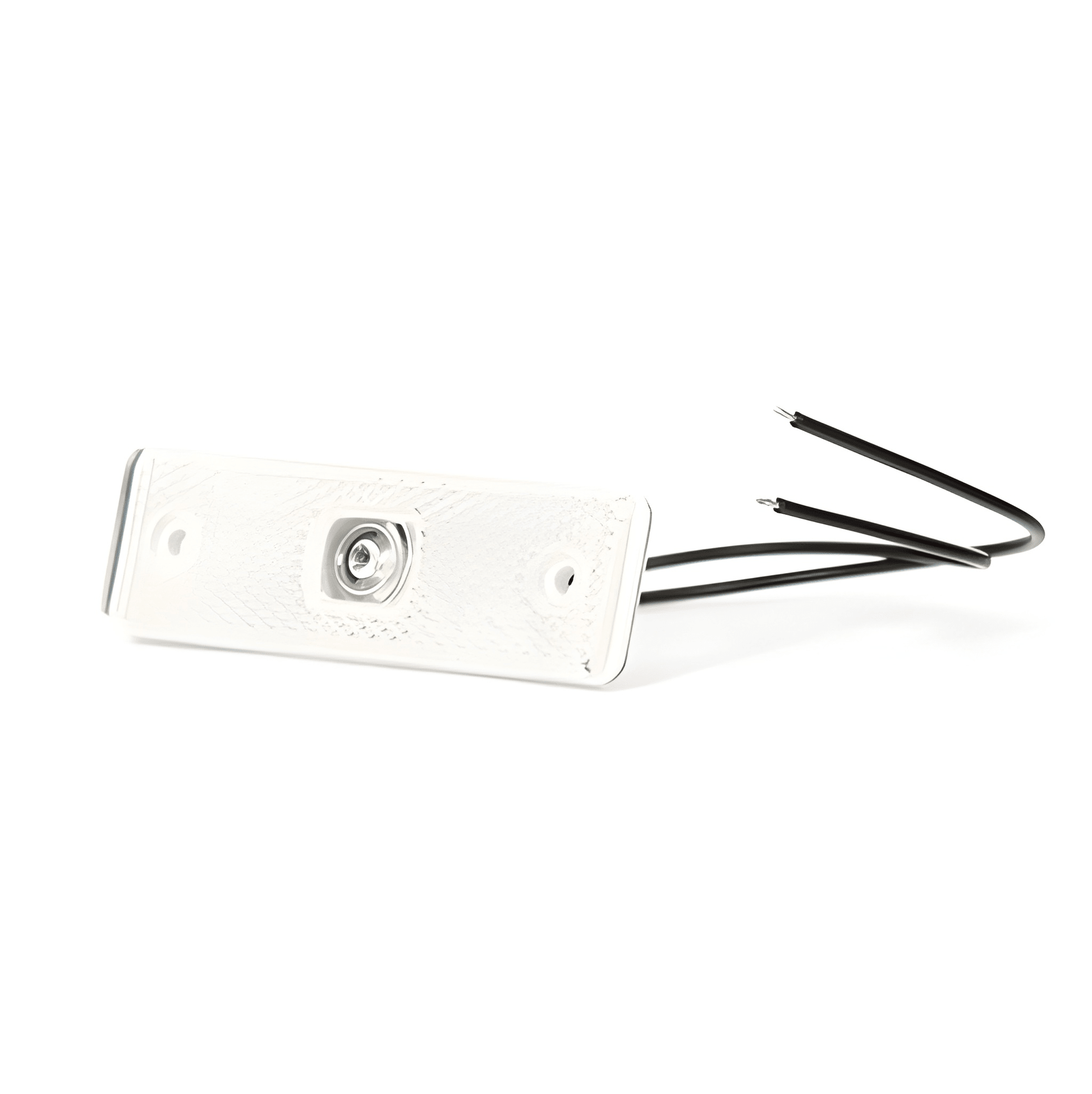

• Type: MP8776B Front Clear LED Marker Lamp, featuring a sleek slimline profile for modern vehicle aesthetics.
• Voltage: Versatile 12/24V compatibility, making it suitable for a wide range of vehicles, from trailers to commercial trucks.
• Visibility: Emits a clear, bright light to enhance front-end visibility and includes an integrated reflector for added safety.
• Cable Length: Comes with a 23cm cable length for straightforward electrical connection.
• Mounting: Designed for secure horizontal mounting with pre-drilled holes, ensuring easy installation.
• Durability: Boasts an IP66 rating, providing excellent protection against dust ingress and high-pressure water jets, ideal for demanding environments.
• Approvals: Fully E Approved and EMC Approved, guaranteeing compliance with European safety and electromagnetic compatibility standards.

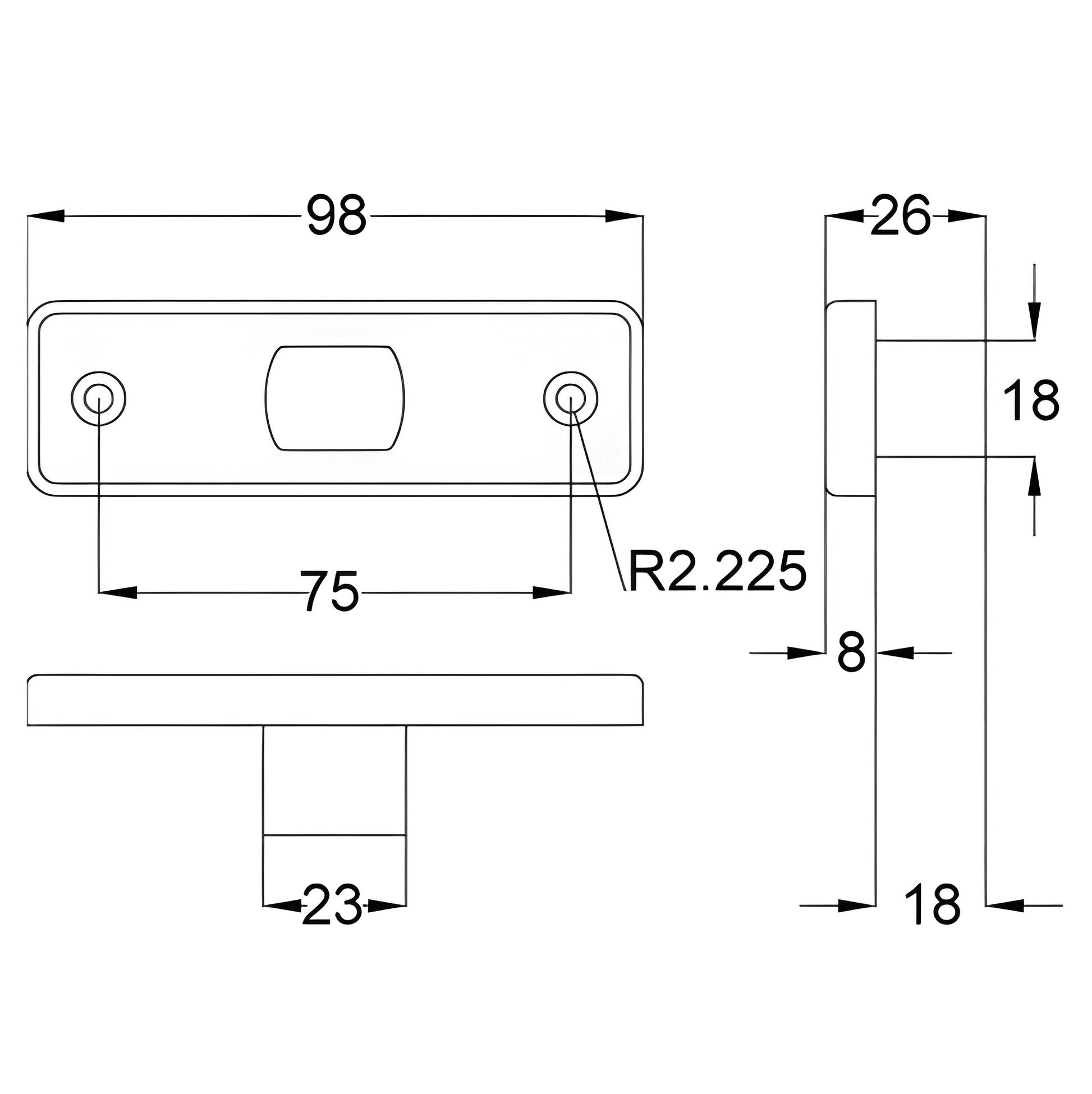

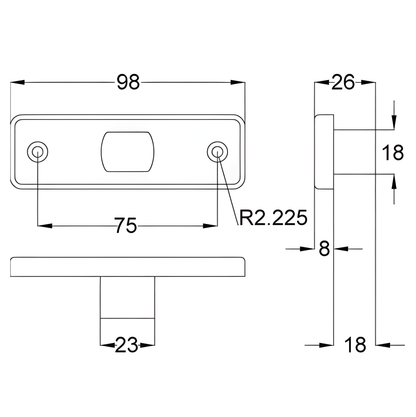

Dimensions:

• Overall Length: 98 mm
• Mounting Hole Spacing (center-to-center): 75 mm
• Overall Height/Depth (from front to back of mounting stem): 26 mm
• Main Body Height: 18 mm
• Mounting Stem Depth/Protrusion: 8 mm
• Mounting Stem Width: 23 mm
• Mounting Stud Length/Protrusion: 18 mm
• Mounting Hole Radius: R2.225

Another High Quality Product From MAYPOLE (A UK Compnay)
