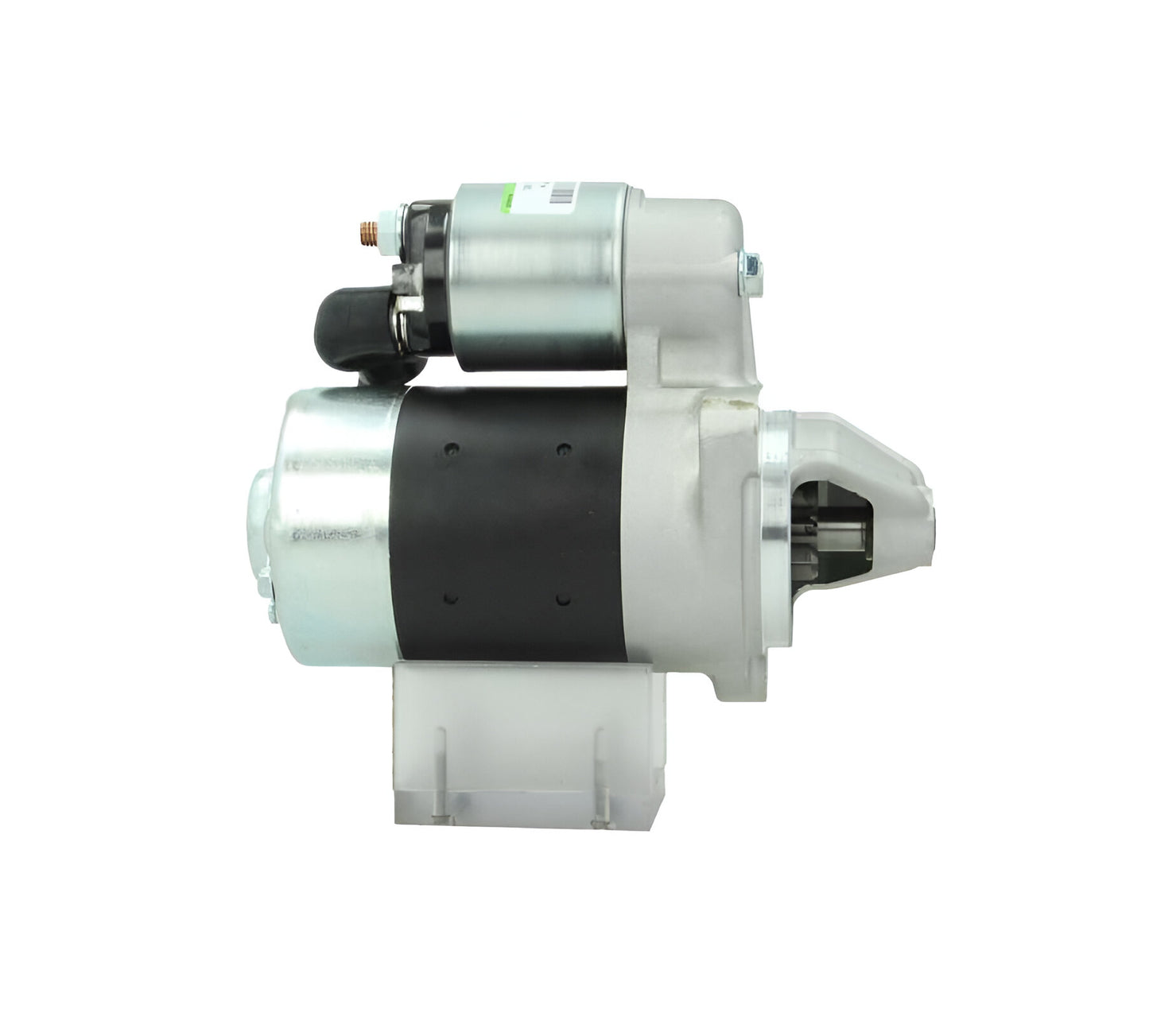

WOOD AUTO 12V 0.8KW STARTER MOTOR SUITABLE FOR YANMAR MARINE INDUSTRIAL BOAT 112478 / STR72116

WOOD AUTO 12V 0.8KW STARTER MOTOR SUITABLE FOR YANMAR MARINE INDUSTRIAL BOAT 112478 / STR72116

112478

STR72116

Electrical specifications

• Voltage 12
• kW 0.8

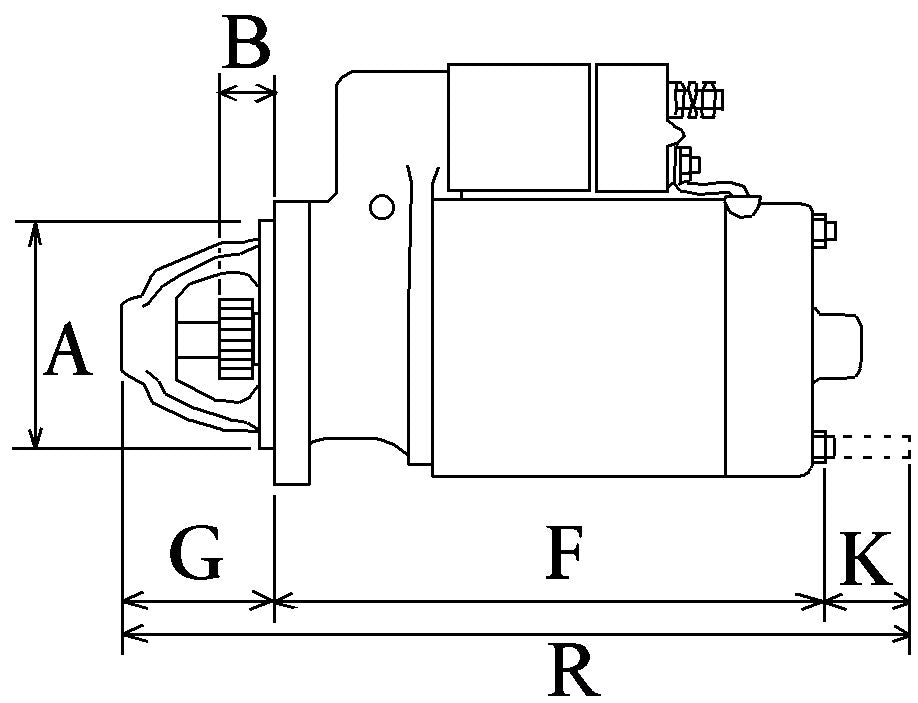

Physical specifications

• A Mount. flange 66.00
• B Drive dist. 14.50
• F Dist./back 142.50
• G Dist./front 49.00
• H No. of teeth 8
• I B+ M8
• N Gear type DD

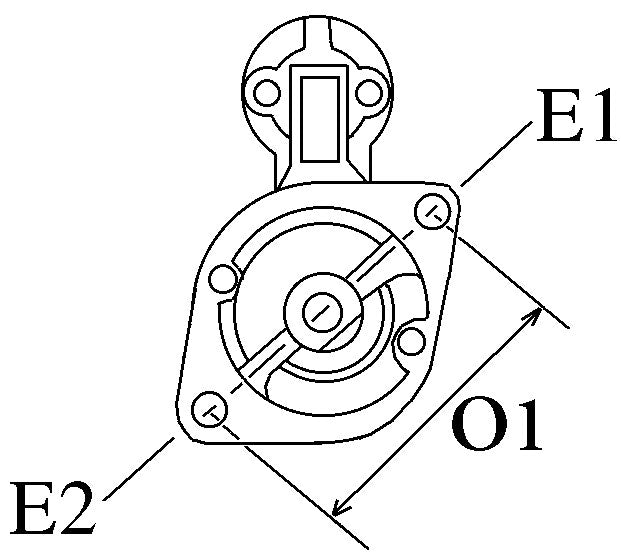

• O Dist. mm 101.65
• P Rotation ACR

Further information

• No./mount. holes 2 (0)
• Clutch type - Wet
• Drive type - Steel
• Oil sealed - No
• Waterproof - No

Replacing

• 01723400    Hatz

• 05720043    Bomag

• 05744152    Bomag

• 11131186    Mahle

• 112478    HC-Cargo

• 113690    HC-Cargo

• 11436177010    Yamaha

• 11436177011    Yanmar

• 11436277010    Yanmar

• 11436277011    Yanmar

• 11439977010    Yanmar

• 116115    HC-Cargo

• 1723400    Hatz

• 18203N    WAI

• 18203R    WAI

• 20513064    Prestolite

• 24008101    Dixie

• 5020327    Meat & Doria

• 50426201    Hatz

• 5744152    Bomag

• 72736042    Mahle

• 91251112    Wilson

• 980505082    PSH

• AZE1230    Mahle

• DRS0078    Delco Remy

• F032112478    HC-Cargo

• F032116115    HC-Cargo

• F042004014    Bosch

• IS1066    Mahle

• LETIS1066    Wood Auto

• LRS01164    Lucas

• LRS1164    Lucas

• MAHMS414    Wood Auto

• MS414    Mahle

• PBNS3064    Prestolite

• QD114A    Dongfeng

• RAS41146    Delco Remy

• RNLS114651    RNL

• RS41146    Delco Remy

• S114414    Hitachi

• S114414A    Hitachi

• S114414B    Hitachi

• S114651    Hitachi

• S114651A    Hitachi

• S8424    Dixie

• ST208    FAI

• STR23000    Wood Auto

• STR3806    Wood Auto

• STR60632    Wood Auto

• STR72116    Wood Auto

• WOOSTR3806    Wood Auto

• WOOSTR72116    Wood Auto


IF YOU ARE IN ANY WAY UNSURE THAT THIS IS THE CORRECT STARTER FOR YOU THEN PLEASE CONTACT US & WE WILL ASSIST YOU.
